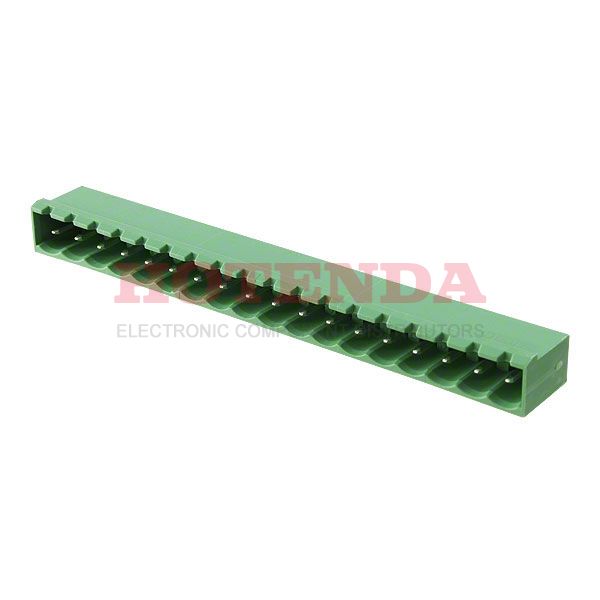

Phoenix Contact

1757624 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1757624 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 907.18474g
PackagingBulk
Published 2003
Series COMBICON MSTBA
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional FeaturePBT, 94V-0
HTS Code8536.69.40.40
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 12mm
Insulation Height 0.339 8.61mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 12A
Number of Levels 1
Current 12A
Contact Mating Finish Tin
Number of Decks 1
Current - UL 15A
Voltage - IEC 400V
Number of Ways 18
Safety Approval UL
Header Orientation 90°, Right Angle
Number of Positions Per Level 18
Length 102mm
Width 12mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:1144 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$7.106247$7.106247
10$6.704007$67.04007
100$6.324534$632.4534
500$5.966542$2983.271
1000$5.628813$5628.813

1757624 Product Details

1757624 Overview


Through Hole is the type of mounting for the device.An orange Bulk case is used to package the product.There is a product in the COMBICON MSTBA Series.To name a few, there is also PBT, 94V-0.Through Hole mounts the part.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (4 Side) line.

1757624 Features


COMBICON MSTBA series

1757624 Applications


There are a lot of Phoenix Contact 1757624 Terminal Blocks applications.

  • Communication
  • Data Technology
  • Telecommunications
  • Datacom
  • Embedded systems
  • Medical technology
  • Energy efficient lighting (LED)
  • Instrumentation
  • LED municipal outdoor and street lighting
  • Military Technology
