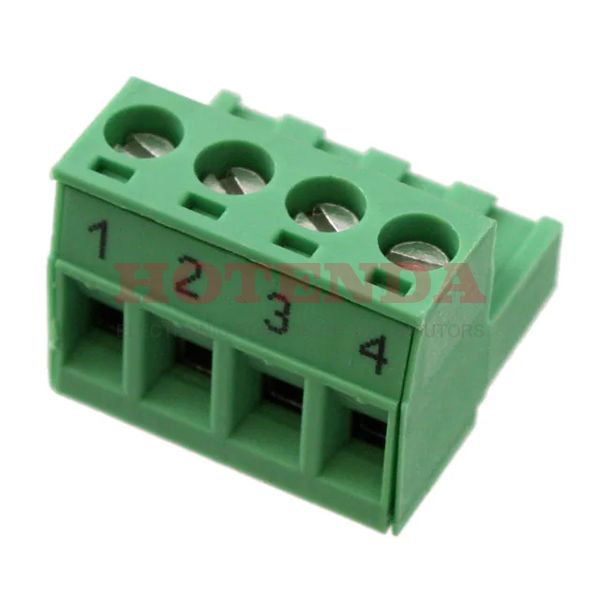

Name: 1758377
Brand: Phoenix Contact
SKU: 1758377
Price: 4.81000 USD
Availability: InStock

new-10%

1758377

Manufacturer part number:1758377

Manufacturer:Phoenix Contact

Description:1758377 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1758377 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	7.070003g
Packaging	Bulk
Published	2010
Series	COMBICON MSTB
Feature	Positions Stamped, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	4
Color	Green
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Poles	4
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Safety Approval	UL; VDE; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1758377 Product Details

1758377 Overview

Screw packaging is included.Mounting type Free Hanging (In-Line) is assigned to the device.To package the product, a Bulk case is used.There is a product in the COMBICON MSTB Series.A number of advantages are provided by its Positions Stamped, Retention Latches (Non-Wire Side) feature.Free Hanging is used to mount the part.
