Name: 1830350
Brand: Phoenix Contact
SKU: 1830350
Price: 18.84000 USD
Availability: InStock

new

1830350

Manufacturer part number:1830350

Manufacturer:Phoenix Contact

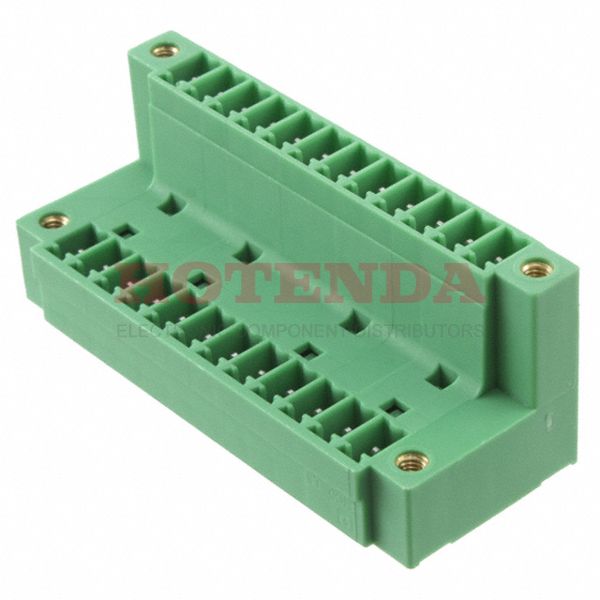

Description:Bulk 0.150 3.81mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MCDV Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1830350 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	118.999987g
Packaging	Bulk
Series	COMBICON MCDV
Published	2011
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	24
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Depth	22.7mm
Insulation Height	0.862 21.89mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	2
Current	8A
Number of Decks	1
Voltage - IEC	320V
Positions Per Level	12
Number of Ways	12
Safety Approval	UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	25.3mm
Length	56.11mm
Width	56.11mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1830350 Product Details

1830350 Overview

A Plug package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the COMBICON MCDV Series of products.Additionally, there are other features, such as PBT, 94V-0.A number of features make it more powerful because of its Mating Flange feature.Through Hole mounts the part.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (4 Side) products.
