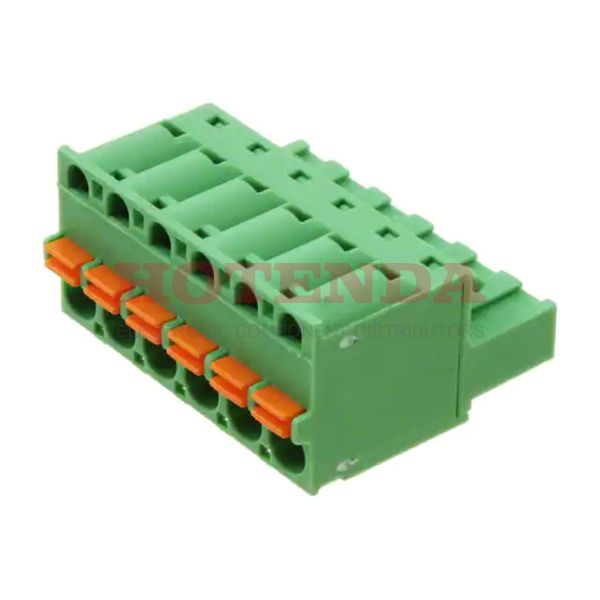

Name: 1910393
Brand: Phoenix Contact
SKU: 1910393
Price: 6.64000 USD
Availability: InStock

new-10%

1910393

Manufacturer part number:1910393

Manufacturer:Phoenix Contact

Description:1910393 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1910393 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	9.840006g
Packaging	Bulk
Published	2010
Series	COMBICON FKC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Orientation	Straight
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CB, CSA, VDE, cULus
Number of Contacts	6
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	10A
Voltage - IEC	630V
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Width	30.1mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1910393 Product Details

1910393 Overview

There is a Free Hanging (In-Line) mounting type for the device.Packaged in a Bulk case.It's part of the COMBICON FKC Series.Besides that, there's also PA, 94V-0, to name a few.With its Retention Latches (Non-Wire Side) feature, it is more powerful in many ways.Cable, Free Hanging represents the mounting point for the part.This part shares lots of benefits with other Plug, Female Sockets products.
