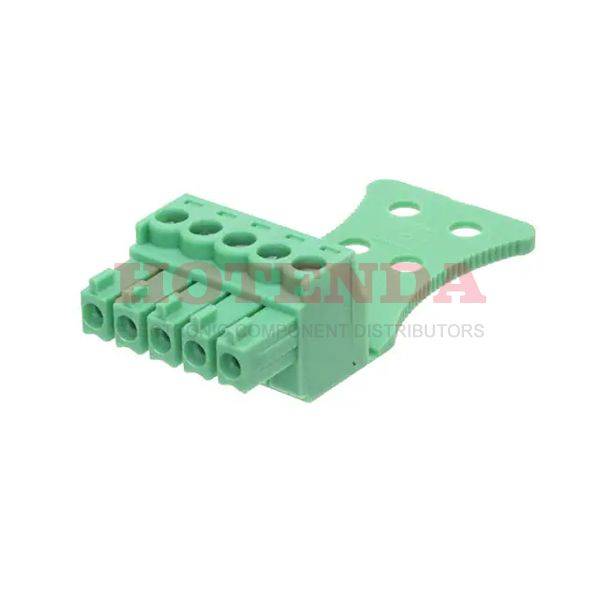

Name: 1767623
Brand: Phoenix Contact
SKU: 1767623
Price: 8.51000 USD
Availability: InStock

new

1767623

Manufacturer part number:1767623

Manufacturer:Phoenix Contact

Description:1767623 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1767623 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2011
Series	COMBICON MC
Feature	Strain Relief
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Voltage - Rated	160V
Pitch	0.138 3.50mm
Reach Compliance Code	not_compliant
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Height	17.5mm
Length	11.6mm
Width	41mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1767623 Product Details

1767623 Overview

A Screw, Socket package is included with it.There is a mounting type of Free Hanging (In-Line) for this device.We package the product with a Bulk case.Specifically, it is one of the products in the COMBICON MC Series.As a result of its Strain Relief feature, it possesses a great deal of power.There is a Free Hanging mount on the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
