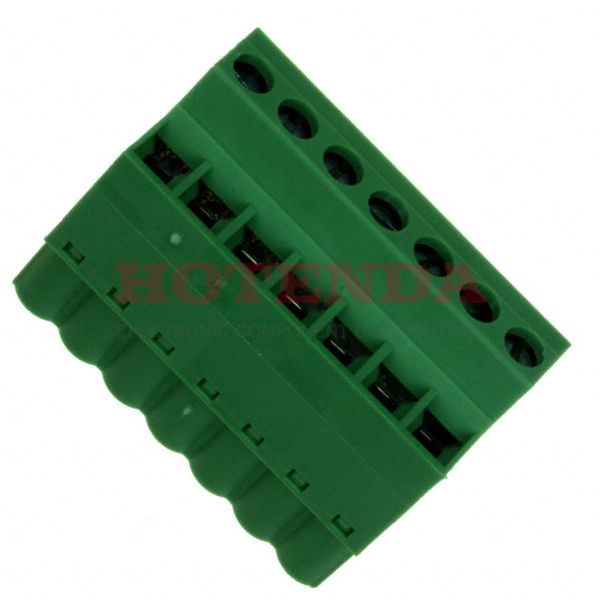

Phoenix Contact

1779466 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1779466 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 5 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 600.102706g
PackagingBulk
Published 2011
Series COMBICON FRONT-MSTB
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 7
Color Green
Voltage - Rated 250V
Additional FeaturePOLYAMIDE, 94V-0
HTS Code8536.69.40.40
Pitch 0.197 5.00mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screw - Pressure Clip
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 7
Safety Approval UL; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Screw Size M2.5
Wire Cross Section 2.5 mm2
Height 27.2mm
Length 15mm
Width 35mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:499 items

Pricing & Ordering

QuantityUnit PriceExt. Price
50$17.20960$860.48

1779466 Product Details

1779466 Overview


Packaging is Screw, Socket.It's mounted Free Hanging (In-Line).An orange Bulk case is used to package the product.The product belongs to the COMBICON FRONT-MSTB Series.There are also other features like POLYAMIDE, 94V-0, to name a few.As a result of its Retention Latches (Non-Wire Side) feature, it possesses a great deal of power.Free Hanging is mounting the part.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

1779466 Features


COMBICON FRONT-MSTB series

1779466 Applications


There are a lot of Phoenix Contact 1779466 Terminal Blocks applications.

  • Datacom
  • Electrical substations
  • Communication
  • Military Technology
  • Control panels
  • Transportation
  • LED municipal outdoor and street lighting
  • Telecommunications
  • Anywhere power is distributed
  • Blowers
