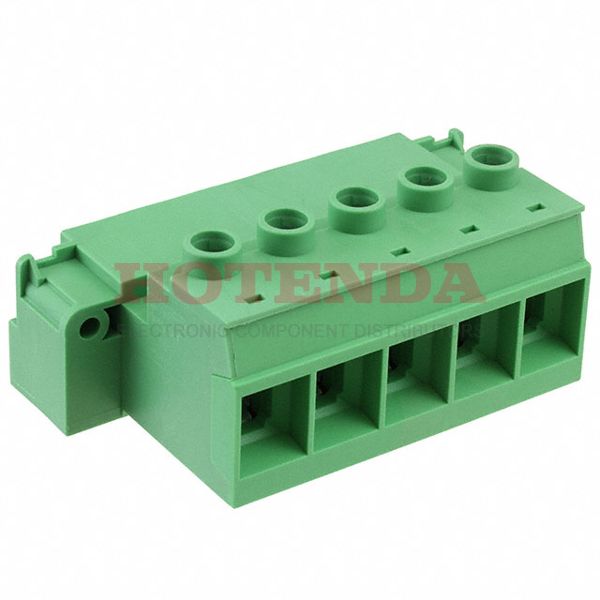

Name: 1784884
Brand: Phoenix Contact
SKU: 1784884
Price: 49.64000 USD
Availability: InStock

new

1784884

Manufacturer part number:1784884

Manufacturer:Phoenix Contact

Description:Bulk 0.591 15.00mm Green 1 Levels Free Hanging (In-Line) Plug, Blade Pins COMBICON IPC Polyamide (PA), Nylon Silver

Case Package:SOT-23

Datasheet:1784884 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Silver
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON IPC
Published	2013
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Type	Plug, Blade Pins
Color	Green
Gender	Female
Voltage - Rated	1kV
Pitch	0.591 15.00mm
Depth	40mm
Insulation Height	1.642 41.70mm
Reach Compliance Code	not_compliant
Current Rating	125A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Number of Levels	1
Current	115A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	2 AWG
Contact Mating Finish	Silver
Voltage - UL	600V
Wire Gauge or Range - AWG	2-16 AWG
Torque - Screw	2.5-4.5 Nm (22.1-39.8 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.5-35mm2
Wire Strip Length	20mm
Current - IEC	125A
Number of Positions Per Level	5
Screw Size	M5
Length	58mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1784884 Product Details

1784884 Overview

The product comes in a package of Screw.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON IPC Series.It is more powerful in many ways due to its Mating Flange feature.It is mounted by Free Hanging.Compared to other Plug, Blade Pins products, this part has a lot of benefits to offer.
