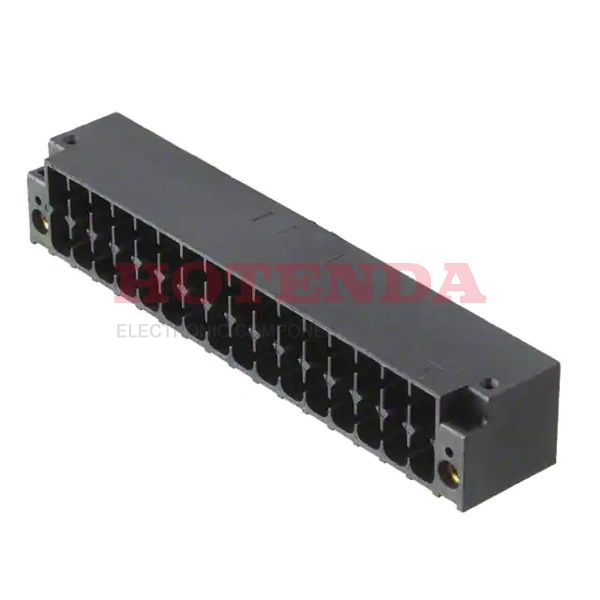

Name: 1787153
Brand: Phoenix Contact
SKU: 1787153
Price: 13.41000 USD
Availability: InStock

new

1787153

Manufacturer part number:1787153

Manufacturer:Phoenix Contact

Description:1787153 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1787153 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Packaging	Bulk
Published	2013
Series	COMBICON DMC
Feature	Mating and Mounting Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	32
Color	Black
Gender	Male
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Insulation Height	0.425 10.80mm
Current Rating	8A
Termination Style	Solder
Voltage	150V
Contact Tail Length	0.079 2.00mm
Number of Levels	2
Current	8A
Voltage - UL	150V
Voltage - IEC	250V
Header Orientation	90°, Right Angle
Number of Positions Per Level	16
Height	12.8mm
Length	11.6mm
Width	63mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1787153 Product Details

1787153 Overview

The product comes in a package of Plug.Through Hole is the mounting type for the device.To package the product, a Bulk case is used.This is from the COMBICON DMC Series.In many ways, it is more powerful due to its Mating and Mounting Flange feature.It is mounted by Through Hole.
