Name: 1823159
Brand: Phoenix Contact
SKU: 1823159
Price: 5.62000 USD
Availability: InStock

new-10%

1823159

Manufacturer part number:1823159

Manufacturer:Phoenix Contact

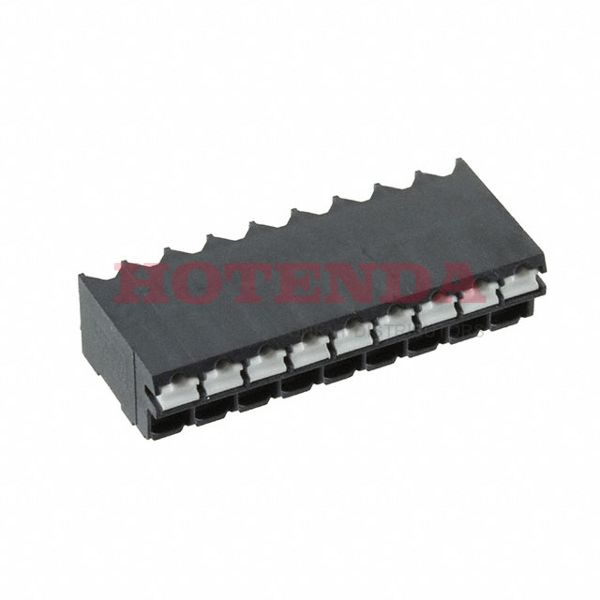

Description:0.200 5.08mm Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Through Hole Horizontal with Board Screwless - Leg Spring, Push-In Spring 1 Levels 16-24 AWG COMBICON SPT-THR

Case Package:SOT-23

Datasheet:1823159 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Contact Material - Plating	Tin Plated
Packaging	Tape & Reel (TR)
Series	COMBICON SPT-THR
Published	2015
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Color	Black
Number of Rows	1
Pitch	0.200 5.08mm
Wire Gauge	16-24 AWG
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	9
Safety Approval	CUL; EAC; UL
Mating Orientation	Horizontal with Board
Wire Termination	Screwless - Leg Spring, Push-In Spring
Number of Positions Per Level	9
Fastening Method	SPRING LOADED
RoHS Status	RoHS Compliant

1823159 Product Details

1823159 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the COMBICON SPT-THR Series.Through Hole is used to mount the part.
