Name: 9995000000
Brand: Weidmüller
SKU: 9995000000
Price: 1.94000 USD
Availability: InStock

new-10%

9995000000

Manufacturer part number:9995000000

Manufacturer:Weidmüller

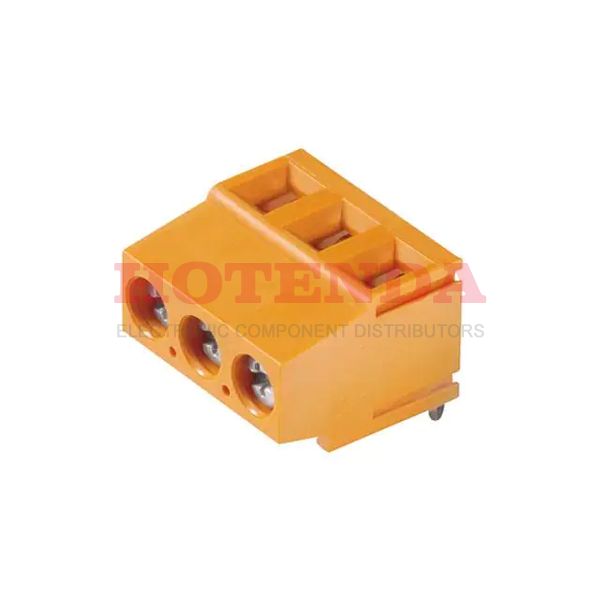

Description:0.200 5.08mm Orange Bulk Thermoplastic, Wemid Through Hole Vertical with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 14-24 AWG Omnimate LM

Case Package:SOT-23

Datasheet:9995000000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LM
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
ECCN Code	EAR99
Color	Orange
Number of Rows	1
Voltage - Rated	300V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Current Rating	10A
Approval Agency	CSA, cURus
Number of Contacts	7
Wire Gauge	14-24 AWG
Number of Levels	1
Current	15A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways	7
Mating Orientation	Vertical with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M2.5
Hole Diameter	1.3 mm
Stripping Length	6mm
Wire Cross Section	2.5 mm2
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

9995000000 Product Details

9995000000 Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Omnimate LM Series of products.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.There is no operating temperature for the device.
