Name: 1935174
Brand: Phoenix Contact
SKU: 1935174
Price: 0.68000 USD
Availability: InStock

new-10%

1935174

Manufacturer part number:1935174

Manufacturer:Phoenix Contact

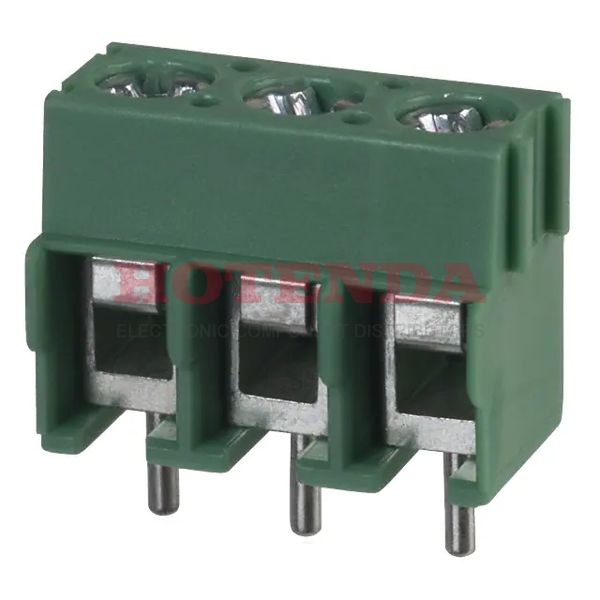

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw 1 Levels 12-26 AWG COMBICON PT

Case Package:SOT-23

Datasheet:1935174 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	2.850006g
Packaging	Bulk
Series	COMBICON PT
Published	2003
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Voltage - Rated DC	320V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	9mm
Current Rating	17.5A
Approval Agency	CB, UL, VDE
Number of Contacts	3
Wire Gauge	12-26 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	16A
Number of Levels	1
Current	18A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw
Screw Thread	M2.6
Stripping Length	5mm
Height	11.3mm
Length	9mm
Width	15mm
Thickness	10mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1935174 Product Details

1935174 Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON PT Series.Among other features are PA, 94V-0, to name only a few.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.This chip should not be operated above 250V volts.
