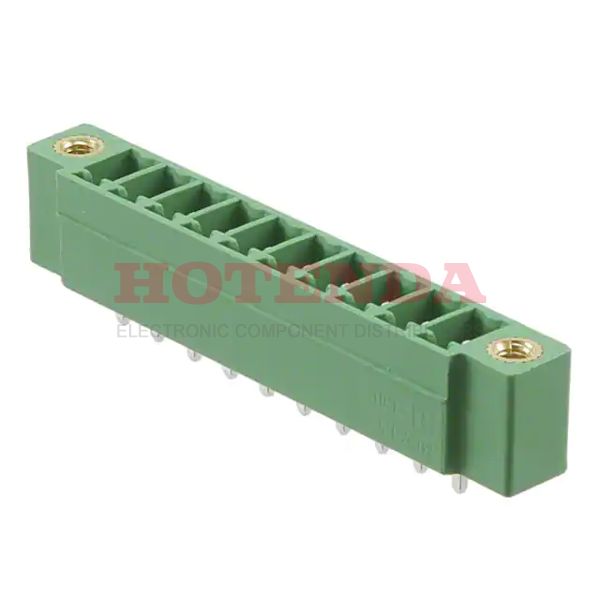

Name: 1830677
Brand: Phoenix Contact
SKU: 1830677
Price: 6.59000 USD
Availability: InStock

new-10%

1830677

Manufacturer part number:1830677

Manufacturer:Phoenix Contact

Description:1830677 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1830677 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2011
Series	COMBICON MCV
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	10
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	10
Height	12.7mm
Length	48.49mm
Width	48.49mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1830677 Product Details

1830677 Overview

You get it in Plug packaging.Mounting type Through Hole is selected for the device.A Bulk case is used for packaging.The product belongs to the COMBICON MCV Series.In addition, there are other features, such as PBT, 94V-0, to mention just a few.There are a number of advantages to its Mating and Mounting Flange feature.It is mounted by Through Hole.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
