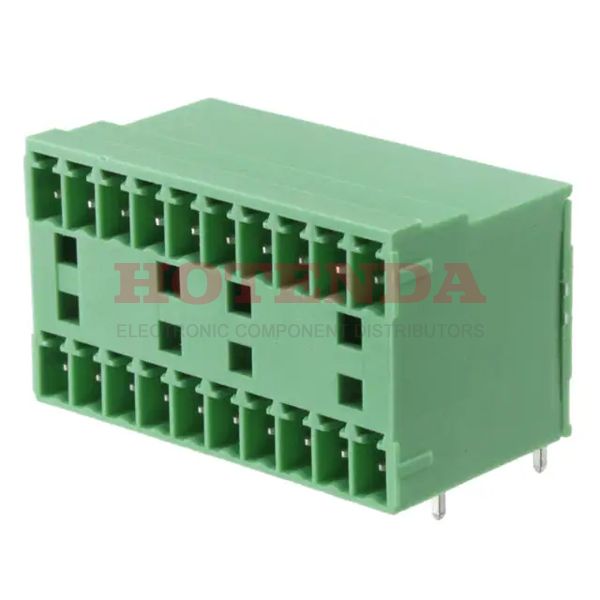

Name: 1843156
Brand: Phoenix Contact
SKU: 1843156
Price: 14.23000 USD
Availability: InStock

new

1843156

Manufacturer part number:1843156

Manufacturer:Phoenix Contact

Description:1843156 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1843156 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	117.000013g
Packaging	Bulk
Published	2011
Series	COMBICON MCD
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	20
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	21.9mm
Insulation Height	0.894 22.71mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CB, CSA, VDE, cULus
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	8A
Number of Levels	2
Current	8A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	320V
Number of Ways	10
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	10
Height	26.2mm
Length	39.49mm
Width	21.9mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843156 Product Details

1843156 Overview

This product is packaged in a Plug carton.Through Hole indicates that the device is mounted.The product is packaged in a Bulk case.It belongs to the COMBICON MCD Series of products.Other features include PBT, 94V-0, to name just a few.Part Through Hole is mounted to the part.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
