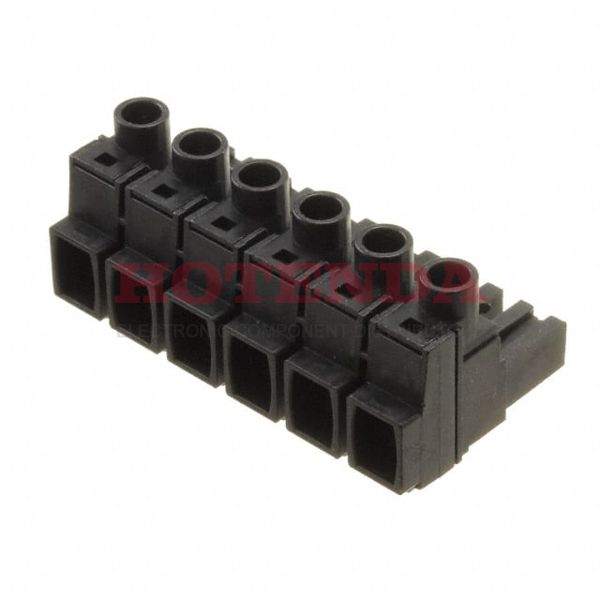

Name: 1049020000
Brand: Weidmüller
SKU: 1049020000
Price: 9.42000 USD
Availability: InStock

new

1049020000

Manufacturer part number:1049020000

Manufacturer:Weidmüller

Description:1049020000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1049020000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Series	Omnimate BL
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Plug, Female Sockets
Number of Positions	6
Color	Black
Voltage - Rated	600V
Pitch	0.300 7.62mm
Ingress Protection	IP20
Insulation Height	0.719 18.26mm
Current Rating	20A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Levels	1
Contact Mating Finish	Tin
Voltage - UL	600V
Wire Gauge or Range - AWG	12-20 AWG
Voltage - IEC	630V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Current - IEC	29A
Screw Size	M2.5
Stripping Length	7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1049020000 Product Details

1049020000 Overview

The device's mounting type is Free Hanging (In-Line).To package the product, a Bulk case is used.There is a product in the Omnimate BL Series.A number of aspects of its Retention Latches (Non-Wire Side) feature make it more powerful.Device runs in -50°C~100°C operating temperature.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
