Name: 1777316
Brand: Phoenix Contact
SKU: 1777316
Price: 14.94000 USD
Availability: InStock

new

1777316

Manufacturer part number:1777316

Manufacturer:Phoenix Contact

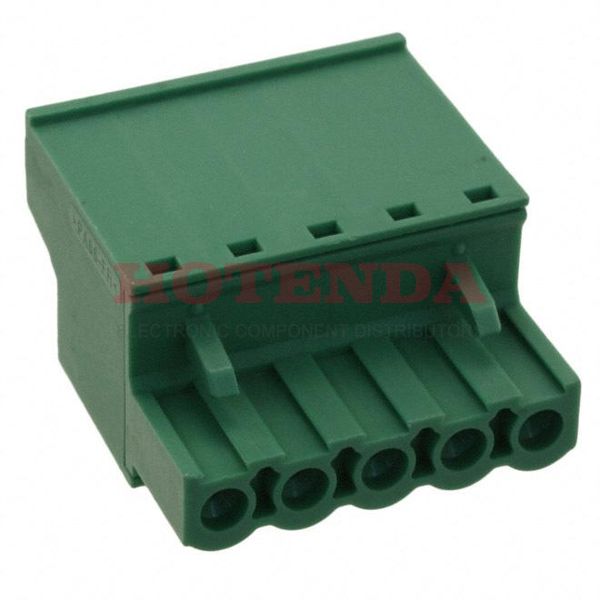

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON FRONT-MSTB Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1777316 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	134.000003g
Packaging	Bulk
Series	COMBICON FRONT-MSTB
Published	2010
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	STANDARD: UL 94V-0, PA
Pitch	0.200 5.08mm
Orientation	Straight
Depth	27.5mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Pressure Clip
Number of Contacts	5
Voltage	300V
Max Supply Voltage	320V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Safety Approval	CB; CSA; CUL; EAC; UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Screw Size	M2.5
Height	25.4mm
Length	25.04mm
Width	27.2mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1777316 Product Details

1777316 Overview

Packaging is in the form of Screw, Socket.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON FRONT-MSTB Series.Other features include STANDARD: UL 94V-0, PA, to name just a few.Several benefits come from the Retention Latches (Non-Wire Side) feature.There is a mounting hole at Cable, Free Hanging.There should be no voltage above 0 on the supply line for this chip.There are many benefits that this part shares with other Plug, Female Sockets products as well.
