1897393

1897393

1897393

Phoenix Contact

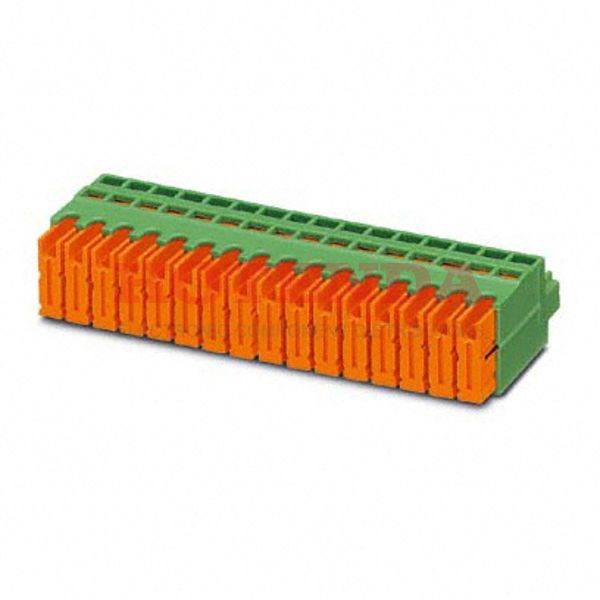

1897393 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1897393 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 96.999991g
PackagingBulk
Published 2010
Series COMBICON QC
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type IDC, IDT, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 200V
Additional FeaturePA, UL 94V-0
HTS Code8536.69.40.40
Pitch 0.150 3.81mm
Insulation Height 0.508 12.90mm
Current Rating6A
Termination Style IDC
Voltage 300V
Number of Levels 1
Current 6A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 22 AWG
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 20-24 AWG
Voltage - IEC 400V
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.34-0.5mm2
Number of Positions Per Level 2
Fastening Method IDC
Height 12.9mm
Length 8.41mm
Width 22.3mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:1902 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.206202$3.206202
10$3.024718$30.24718
100$2.853508$285.3508
500$2.691989$1345.9945
1000$2.539612$2539.612

1897393 Product Details

1897393 Overview


A IDC, IDT, Socket packaging is included.Free Hanging (In-Line) is the mounting type of the device.A Bulk case is used to package the product.A product of the COMBICON QC Series, it belongs to the range of products of that series.Additionally, there are other features, such as PA, UL 94V-0.There is a Free Hanging mount on the part.There are a lot of similarities between this part and other Plug, Female Sockets products.

1897393 Features


COMBICON QC series

1897393 Applications


There are a lot of Phoenix Contact 1897393 Terminal Blocks applications.

  • Refrigeration control
  • Energy efficient lighting (LED)
  • Transportation
  • Automotive Electronics
  • Control panels
  • Industrial Automation
  • Instrumentation
  • Blowers
  • LED municipal outdoor and street lighting
  • Anywhere power is distributed
