1933202

1933202

1933202

Phoenix Contact

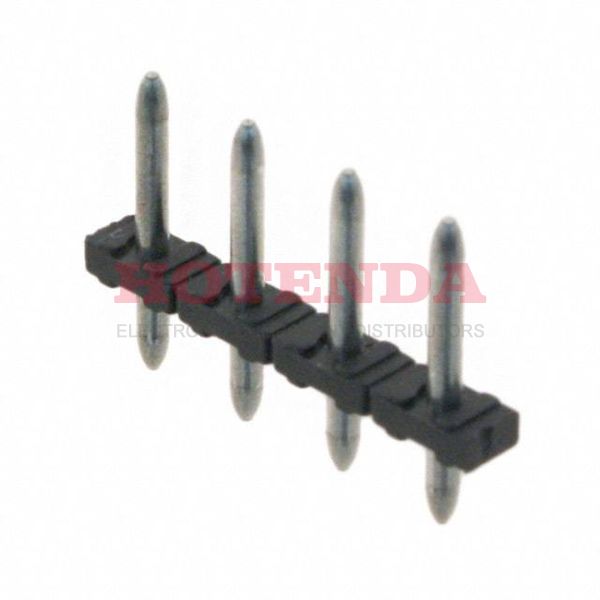

1933202 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1933202 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact MaterialCopper
Mount Through Hole
Mounting Type Through Hole
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 670.01263mg
PackagingBulk
Published 2003
Series COMBICON PST
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Unshrouded
Color Black
Number of Rows 1
Voltage - Rated 250V
Voltage - Rated DC 400V
Pitch 0.197 5.00mm
Orientation Straight
Depth 2.8mm
Insulation Height 0.079 2.00mm
Current Rating12A
Termination Style Solder
Voltage 300V
Contact Tail Length 0.138 3.50mm
Max Current Rating 10A
Number of Levels 1
Current 16A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 26 AWG
Number of Poles 4
Contact Mating Finish Tin
Number of Decks 1
Number of Ways 4
Safety Approval UL
Header Orientation Vertical
Current - IEC 12A
Length 20mm
Width 15mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:18362 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.33000$0.33
10$0.32600$3.26
50$0.30460$15.23
100$0.28010$28.01
250$0.25888$64.72

1933202 Product Details

1933202 Overview


Mounting type is Through Hole.Bulk cases are used to package the product.A product of the COMBICON PST Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.There are a lot of advantages this part has in common with other Header, Male Pins, Unshrouded parts.

1933202 Features


COMBICON PST series

1933202 Applications


There are a lot of Phoenix Contact 1933202 Terminal Blocks applications.

  • LED municipal outdoor and street lighting
  • All Electrical Machinery
  • Automotive Electronics
  • Industrial Automation
  • Communication
  • Control panels
  • Measuring & Control Technology
  • Anywhere power is distributed
  • Variable speed/frequency drivers
  • Telecommunications
