Name: 1935831
Brand: Phoenix Contact
SKU: 1935831
Price: 2.07000 USD
Availability: InStock

new-10%

1935831

Manufacturer part number:1935831

Manufacturer:Phoenix Contact

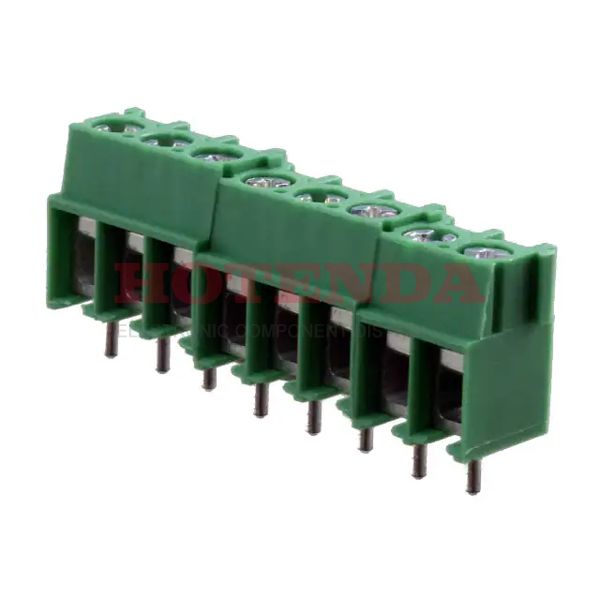

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw 1 Levels 12-20 AWG COMBICON PT

Case Package:SOT-23

Datasheet:1935831 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	9.570005g
Packaging	Bulk
Series	COMBICON PT
Published	2005
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Max Operating Temperature	100°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	400V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	9mm
Current Rating	32A
Approval Agency	UL
Wire Gauge	12-20 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	32A
Number of Levels	1
Current	20A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	10 AWG
Number of Poles	8
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.45-0.5 Nm (3.9-4.4 Lb-In)
Number of Ways	8
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw
Screw Thread	M3
Wire Cross Section	4 mm2
Ambient Temperature Range High	100°C
Height	13.5mm
Length	9mm
Width	40mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1935831 Product Details

1935831 Overview

This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON PT Series.When the temperature is below 100°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.Part Through Hole is mounted to the part.It is recommended that this chip's supply voltage does not exceed 250V.
