1952128

1952128

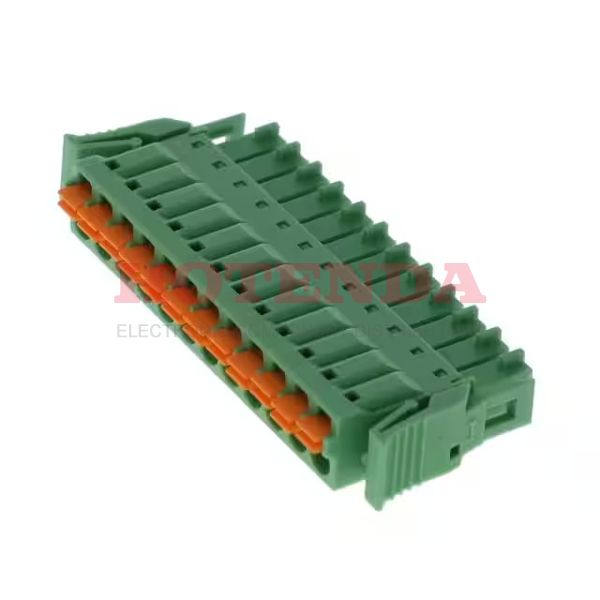

1952128

Phoenix Contact

1952128 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1952128 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 6.709992g
PackagingBulk
Published 2003
Series COMBICON FMC
Feature Latch Lock
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional FeaturePA, UL 94V-0
HTS Code8536.69.40.40
Pitch 0.138 3.50mm
Depth 7.8mm
Insulation Height 0.307 7.80mm
Current Rating8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Number of Ways 12
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 12
Fastening Method SPRING LOADED
Height 22.9mm
Length 22.9mm
Width 52.1mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:330 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$18.586599$18.586599
10$17.534528$175.34528
100$16.542007$1654.2007
500$15.605667$7802.8335
1000$14.722327$14722.327

1952128 Product Details

1952128 Overview


Packaging is in the form of Socket.Free Hanging (In-Line) is the mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON FMC Series.Additionally, there are features like PA, UL 94V-0, just to name a few.A number of advantages are provided by its Latch Lock feature.By Free Hanging, the part is mounted.As with other Plug, Female Sockets products, this part has a lot of benefits.

1952128 Features


COMBICON FMC series

1952128 Applications


There are a lot of Phoenix Contact 1952128 Terminal Blocks applications.

  • Refrigeration control
  • Industrial Automation
  • Control panels
  • Measuring & Control Technology
  • Electrical substations
  • Embedded systems
  • Medical technology
  • Variable speed/frequency drivers
  • Energy efficient lighting (LED)
  • Blowers
