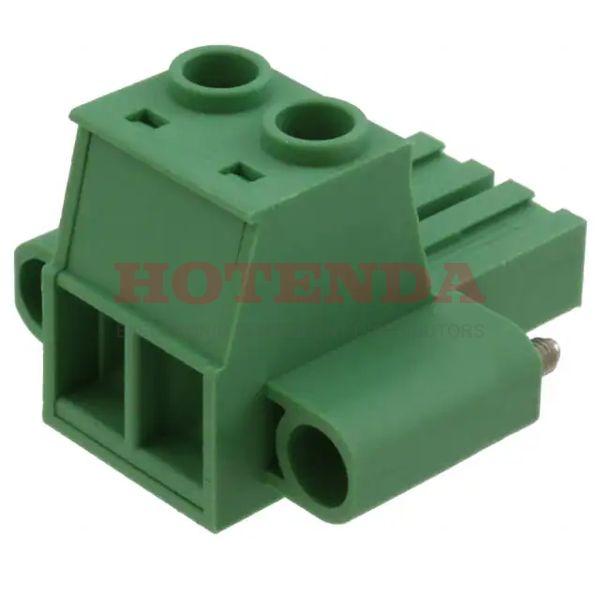

Name: 1967456
Brand: Phoenix Contact
SKU: 1967456
Price: 11.09000 USD
Availability: InStock

new

1967456

Manufacturer part number:1967456

Manufacturer:Phoenix Contact

Description:1967456 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1967456 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Silver
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	21.700001g
Packaging	Bulk
Published	2004
Series	COMBICON PC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.400 10.16mm
Orientation	Right Angle
Insulation Height	1.094 27.80mm
Reach Compliance Code	unknown
Current Rating	76A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	2
Voltage	600V
Max Current Rating	76A
Number of Levels	1
Current	55A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	6 AWG
Wire/Cable Gauge	6 AWG
Number of Decks	1
Wire Gauge or Range - AWG	6-20 AWG
Voltage - IEC	1kV
Torque - Screw	1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-16mm2
Wire Strip Length	12mm
Screw Size	M4
Height	38.08mm
Length	27.8mm
Width	41.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1967456 Product Details

1967456 Overview

This product is packaged in a Screw, Socket cartonA Free Hanging (In-Line) mounting type is specified for the device.It's packaged in a Bulk case.COMBICON PC Series product.Then there's PA, UL 94V-0, for example.As a result of its Mating Flange feature, it possesses a great deal of power.In this case, Free Hanging, Panel mounts the part.
