Name: 1988930
Brand: Phoenix Contact
SKU: 1988930
Price: 2.93000 USD
Availability: InStock

new-10%

1988930

Manufacturer part number:1988930

Manufacturer:Phoenix Contact

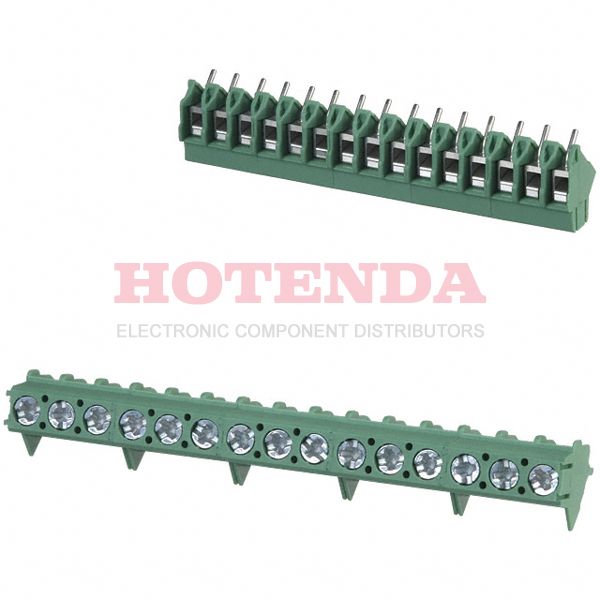

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screw 1 Levels 12-26 AWG COMBICON PTA

Case Package:SOT-23

Datasheet:1988930 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	15.30999g
Packaging	Bulk
Series	COMBICON PTA
Published	2011
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Number of Positions	15
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Depth	12.8mm
Reach Compliance Code	unknown
Current Rating	24A
Wire Gauge	12-26 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	24A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways	15
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screw
Screw Thread	M2.6
Wire Cross Section	2.5 mm2
Height	11.9mm
Length	75mm
Width	12.8mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1988930 Product Details

1988930 Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the COMBICON PTA Series of products.Additionally, there are other features, such as PA, UL 94V-0.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.This chip should not be supplied with a voltage greater than 250V.
