1990083

  • 1990083 - 0.098 2.50mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 20-26 AWG COMBICON PTSA
  • 1990083 - 0.098 2.50mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 20-26 AWG COMBICON PTSA

1990083

1990083

Phoenix Contact

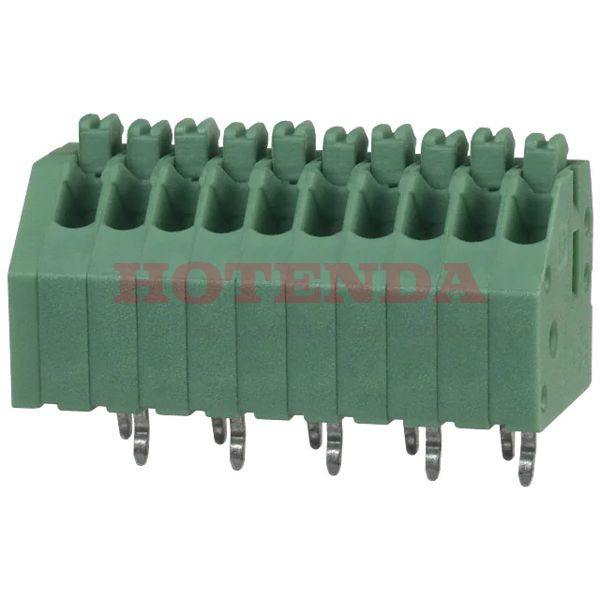

0.098 2.50mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 20-26 AWG COMBICON PTSA

SOT-23

1990083 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact MaterialCopper
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Weight 3.620007g
PackagingBulk
Series COMBICON PTSA
Published 2005
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Color Green
Number of Rows 1
Voltage - Rated 160V
HTS Code8536.69.40.40
Pitch 0.098 2.50mm
Reach Compliance Code unknown
Current Rating2A
Approval Agency UL, VDE
Number of Contacts 10
Wire Gauge20-26 AWG
Voltage 300V
Max Current Rating 2A
Number of Levels 1
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Wire/Cable Gauge 20 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 10
Safety Approval UL; VDE
Mating Orientation 45° (135°) Angle with Board
Wire TerminationScrewless - Spring Cage, Tension Clamp
Wire Cross Section 0.5 mm2
Fastening Method CONNECTOR
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:4117 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.058409$1.058409
10$0.998499$9.98499
100$0.941980$94.198
500$0.888660$444.33
1000$0.838359$838.359

1990083 Product Details

1990083 Overview


Through Hole is the mounting type of the device.We pack the product in a Bulk case.This is from the COMBICON PTSA Series.This part is mounted by Through Hole.

1990083 Features


COMBICON PTSA series


1990083 Applications


There are a lot of Phoenix Contact
1990083 Terminal Blocks applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
