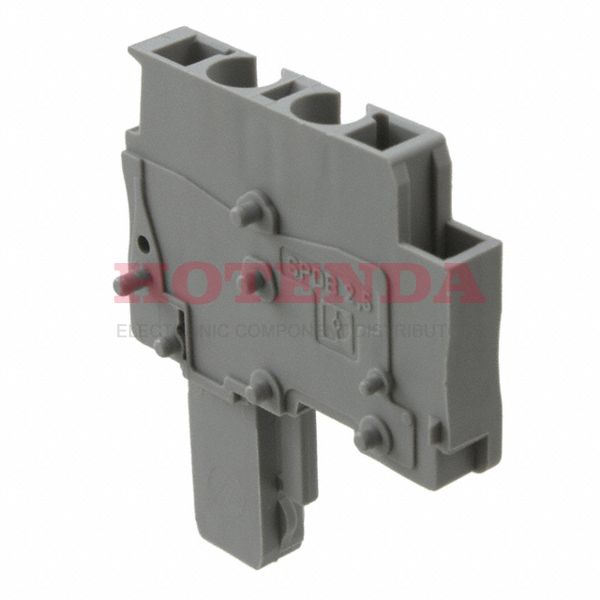

Name: 3043226
Brand: Phoenix Contact
SKU: 3043226
Price: 4.38000 USD
Availability: InStock

new-10%

3043226

Manufacturer part number:3043226

Manufacturer:Phoenix Contact

Description:3043226 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:3043226 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	5.179997g
Packaging	Bulk
Published	2011
Series	CLIPLINE COMBI SPDB
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Connector Type	IDC, IDT
Type	Plug, Female Sockets
Number of Positions	1 (Mate), 2 (Input)
Color	Gray
Voltage - Rated	500V
Insulation Height	1.535 39.00mm
Current Rating	24A
Termination Style	Screwless - Spring Cage, Tension Clamp
Voltage	600V
Number of Levels	1 (Mate), 2 (Input)
Current	5A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	12 AWG
Voltage - UL	300V
Wire Gauge or Range - AWG	12-28 AWG
Current - UL	20A
Positions Per Level	1
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.08-4mm2
Wire Strip Length	10mm
Height	39mm
Length	32.7mm
Width	5.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

3043226 Product Details

3043226 Overview

You'll get IDC, IDT packages.Free Hanging (In-Line) is the mounting type for the device.It has been determined that a Bulk case is necessary to package the product.The product belongs to the CLIPLINE COMBI SPDB Series.You've got Free Hanging mounted on the part.It shares many benefts with other Plug, Female Sockets products.
