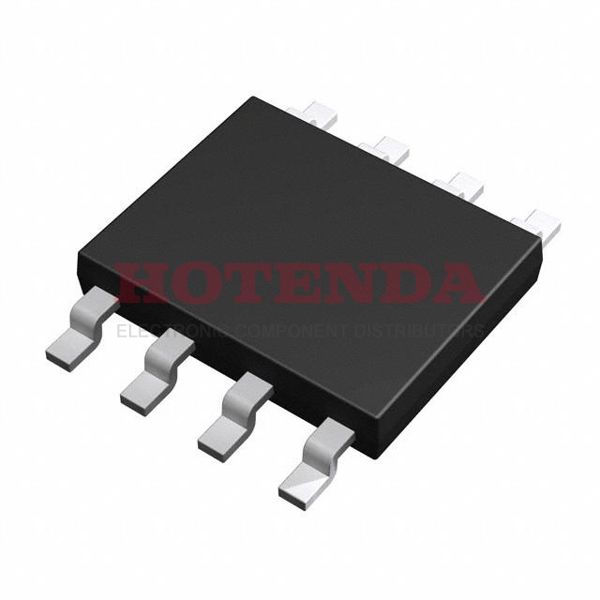

Name: RSS065N03FU6TB
Brand: ROHM Semiconductor
SKU: RSS065N03FU6TB
Availability: InStock

new-10%

RSS065N03FU6TB

Manufacturer part number:RSS065N03FU6TB

Manufacturer:ROHM Semiconductor

Description:MOSFET N-CH 30V 6.5A 8SOIC

Case Package:SOT-23

Datasheet:RSS065N03FU6TB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8
Operating Temperature	150°C TJ
Packaging	Tape & Reel (TR)
Published	2004
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
ECCN Code	EAR99
Resistance	27mOhm
Technology	MOSFET (Metal Oxide)
Power Dissipation-Max	2W Ta
Power Dissipation	2W
Turn On Delay Time	8 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	26m Ω @ 6.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds	430pF @ 10V
Current - Continuous Drain (Id) @ 25°C	6.5A Ta
Gate Charge (Qg) (Max) @ Vgs	6.1nC @ 5V
Rise Time	8ns
Drive Voltage (Max Rds On,Min Rds On)	4V 10V
Vgs (Max)	±20V
Fall Time (Typ)	8 ns
Turn-Off Delay Time	31 ns
Continuous Drain Current (ID)	6.5A
Threshold Voltage	2.5V
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	30V
Dual Supply Voltage	30V
Nominal Vgs	2.5 V
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

About RSS065N03FU6TB

The RSS065N03FU6TB from ROHM Semiconductor is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 30V 6.5A 8SOIC.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the RSS065N03FU6TB, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
