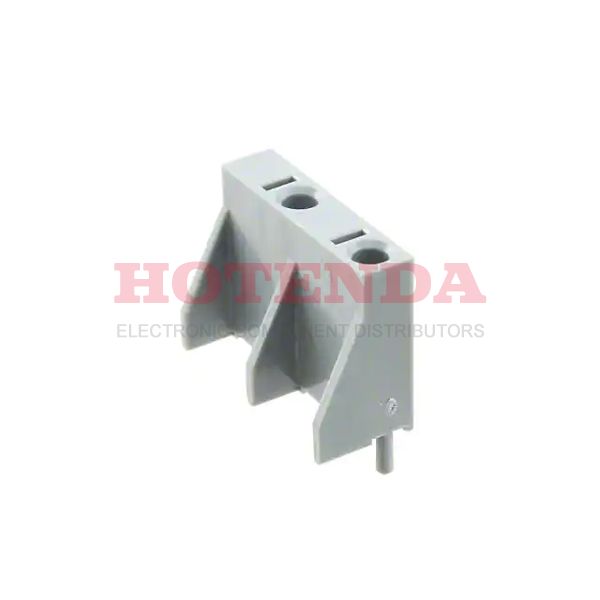

Name: 1-2008552-2
Brand: TE Connectivity AMP Connectors
SKU: 1-2008552-2
Price: 0.62000 USD
Availability: InStock

new-10%

1-2008552-2

Manufacturer part number:1-2008552-2

Manufacturer:TE Connectivity AMP Connectors

Description:0.323 8.20mm Gray Bulk Polybutylene Terephthalate (PBT) Through Hole Vertical with Board Screwless - Leg Spring, Push-In Spring 1 Levels 18 AWG

Case Package:SOT-23

Datasheet:1-2008552-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	14 Weeks
Contact Material	Bronze
Contact Plating	Tin
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	45.359237g
Contact Material - Plating	Phosphor Bronze - Tin Plated
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2009
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Through Hole
Connector Type	Header
Number of Positions	2
Color	Gray
Gender	Male
Voltage - Rated	600V
Pitch	0.323 8.20mm
Orientation	Straight
Depth	7.35mm
Current Rating	2A
Approval Agency	CSA
Housing Color	Grey
Wire Gauge	18 AWG
ELV	Compliant
Max Voltage Rating (AC)	600V
Wire/Cable Type	Discrete
Number of Levels	1
Wire/Cable Gauge	18 AWG
Sealable	No
Contact Current Rating	2A
Insulation Diameter	2.19964 mm
Mating Orientation	Vertical with Board
Wire Termination	Screwless - Leg Spring, Push-In Spring
Preloaded	Yes
Max Supply Voltage (DC)	600V
Height	13mm
Length	24.9936mm
Width	7.35mm
Plating Thickness	3.05μm
PCB Thickness	1.8mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1-2008552-2 Product Details

1-2008552-2 Overview

Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.-40°C~105°C Operating Temperature is the default operating temperature for the device.
