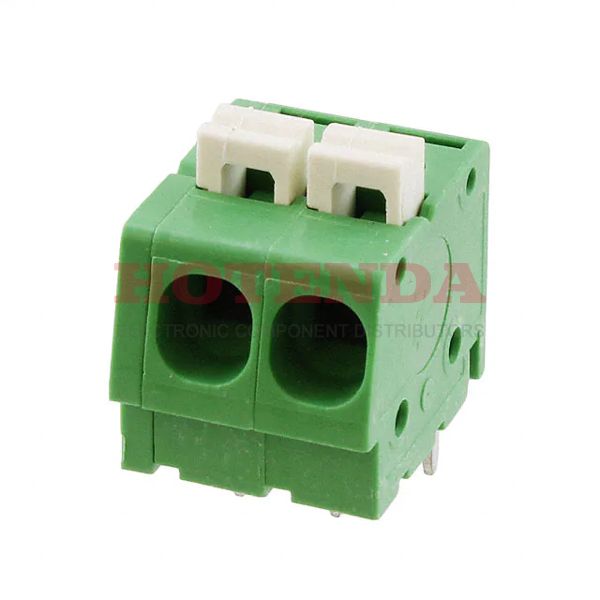

Name: 1986712-2
Brand: TE Connectivity AMP Connectors
SKU: 1986712-2
Price: 2.38000 USD
Availability: InStock

new-10%

1986712-2

Manufacturer part number:1986712-2

Manufacturer:TE Connectivity AMP Connectors

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screwless - Push Button Clamp 1 Levels 12-30 AWG

Case Package:SOT-23

Datasheet:1986712-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	12 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Clamp Material - Plating	Steel
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2012
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Terminal Block
Color	Green
Number of Rows	2
Voltage - Rated	300V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	14.8mm
Current Rating	16A
Lead Length	3.5mm
Wire Gauge	12-30 AWG
ELV	Compliant
Max Current Rating	16A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	30 AWG
Mating Orientation	Horizontal with Board
Wire Termination	Screwless - Push Button Clamp
Max Supply Voltage (AC)	300V
Length	11.66mm
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant

1986712-2 Product Details

1986712-2 Overview

Currently, it is packaged in Terminal Block.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Bulk case.A number of benefits can be derived from the Interlocking (Side) feature of this application.Through Hole is the mounting point for the part.-40°C~110°C Operating Temperature is used by the device.
