Name: 282857-2
Brand: TE Connectivity AMP Connectors
SKU: 282857-2
Price: 1.74000 USD
Availability: InStock

new-10%

282857-2

Manufacturer part number:282857-2

Manufacturer:TE Connectivity AMP Connectors

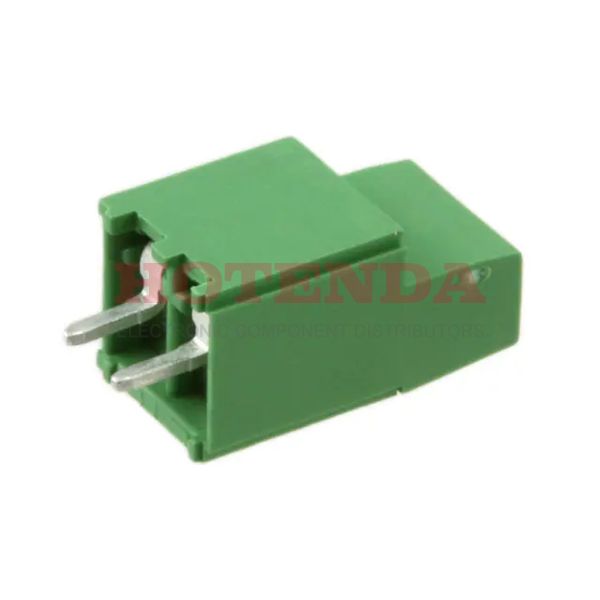

Description:0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282857-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Nylon
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Receptacle
Color	Green
Gender	Female
Voltage - Rated	300V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	10mm
Current Rating	24A
Voltage - Rated AC	300V
Number of Contacts	2
Wire Gauge	12-30 AWG
Max Voltage Rating (AC)	250V
Max Current Rating	24A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	30 AWG
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.79 Nm (7.0 Lb-In)
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	250V
Length	10.16mm
Width	10mm
Length - Tail	3.5mm
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

282857-2 Product Details

282857-2 Overview

Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
