Name: 282857-5
Brand: TE Connectivity AMP Connectors
SKU: 282857-5
Price: 3.08000 USD
Availability: InStock

new-10%

282857-5

Manufacturer part number:282857-5

Manufacturer:TE Connectivity AMP Connectors

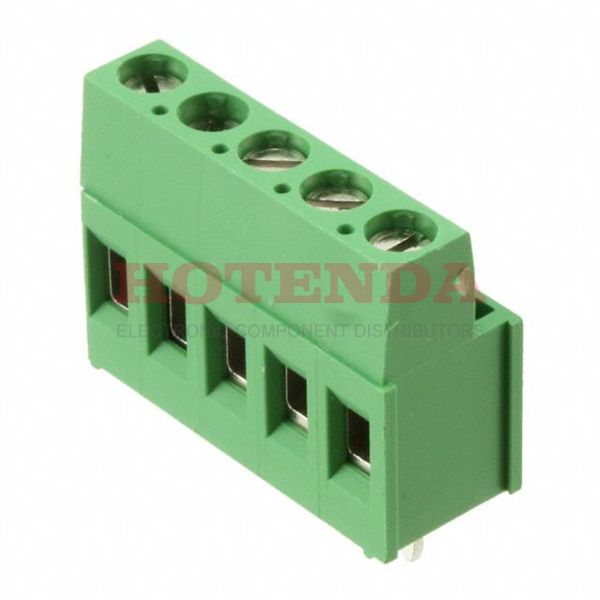

Description:0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:282857-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Bulk
Series	Buchanan
Published	2001
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	10mm
Current Rating	24A
Number of Contacts	5
Housing Color	Green
Wire Gauge	12-30 AWG
Voltage	300V
ELV	Compliant
Number of Circuits	5
Max Current Rating	24A
Plating	Brass
Number of Levels	1
Current	24A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.79 Nm (7.0 Lb-In)
Positions Per Level	5
Thread Size	M3
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	5
Max Supply Voltage (AC)	250V
Length	25.4mm
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

282857-5 Product Details

282857-5 Overview

Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.This part has 5 circuits.
