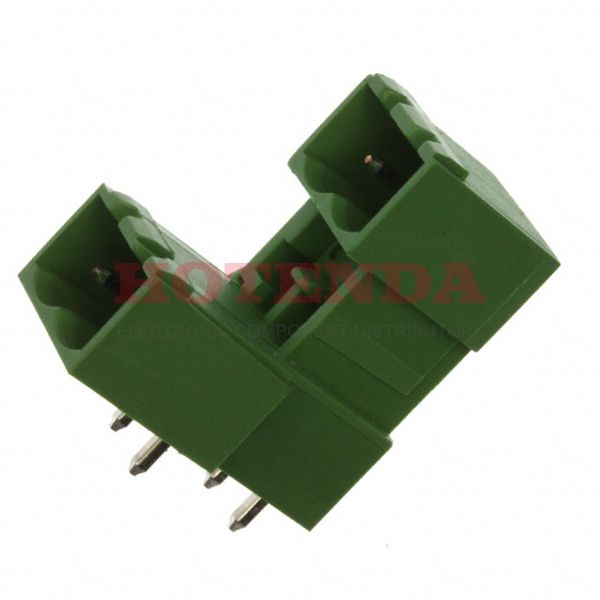

Name: 284061-2
Brand: TE Connectivity AMP Connectors
SKU: 284061-2
Price: 1.73000 USD
Availability: InStock

new-10%

284061-2

Manufacturer part number:284061-2

Manufacturer:TE Connectivity AMP Connectors

Description:284061-2 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:284061-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Color	Green
Number of Rows	2
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	22.1mm
Insulation Height	0.902 22.90mm
Current Rating	15A
Termination Style	Solder
Voltage - Rated AC	300V
Shrouding	Yes
Voltage	300V
Contact Tail Length	0.138 3.50mm
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Current	12A
Contact Mating Finish	Tin
Number of Decks	2
Positions Per Level	2
Number of Ways	44
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	2
Fastening Method	CONNECTOR
Length	14.74mm
Length - Tail	3.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

284061-2 Product Details

284061-2 Overview

This product is packaged in a Header box.There is a mounting type of Through Hole for this device.The product is packaged in a Bulk case.It is part of the Buchanan Series of products.In many ways, its Interlocking (Side) feature makes it more powerful.It is mounted by Through Hole.This device runs at -40°C~110°C operating temperature.There are many benefits shared between this part and other Header, Male Pins, Shrouded (4 Side) products.
