Name: 284415-9
Brand: TE Connectivity AMP Connectors
SKU: 284415-9
Price: 7.57000 USD
Availability: InStock

new-10%

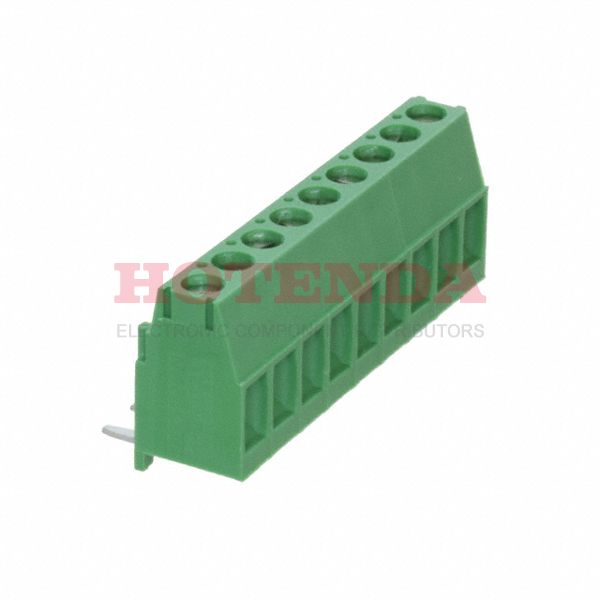

284415-9

Manufacturer part number:284415-9

Manufacturer:TE Connectivity AMP Connectors

Description:0.150 3.81mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:284415-9 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Tray
Series	Buchanan
Published	2007
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Receptacle
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.150 3.81mm
Orientation	Right Angle
Current Rating	12A
Number of Contacts	9
Wire Gauge	12-30 AWG
ELV	Compliant
Max Current Rating	12A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.25 Nm (2.2 Lb-In)
Number of Ways	9
Safety Approval	UL
Mating Orientation	Vertical with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

284415-9 Product Details

284415-9 Overview

The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the Buchanan Series.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.
