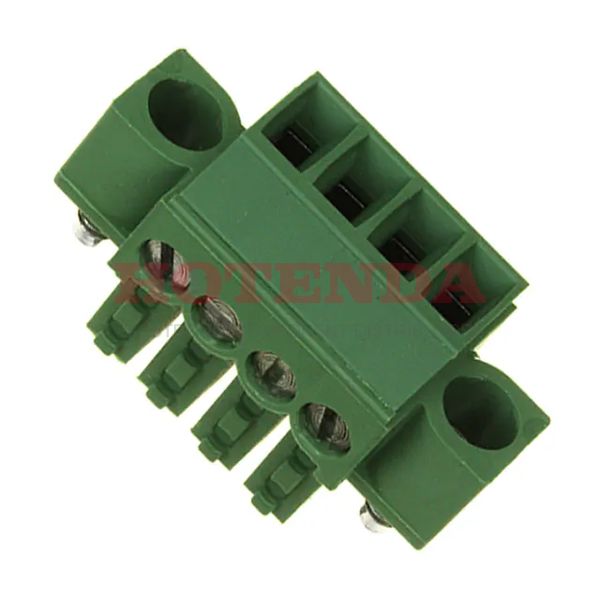

Name: 284510-4
Brand: TE Connectivity AMP Connectors
SKU: 284510-4
Price: 6.13000 USD
Availability: InStock

new-10%

284510-4

Manufacturer part number:284510-4

Manufacturer:TE Connectivity AMP Connectors

Description:284510-4 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:284510-4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	21 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Contact Material	Phosphor Bronze
Mount	Free Hanging, Through Hole
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~110°C
Packaging	Bulk
Published	2007
Series	Buchanan
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	300V
Additional Feature	POLARIZATION AVAILABLE
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	15.5mm
Insulation Height	0.437 11.10mm
Current Rating	11A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	300V
Number of Contacts	4
Voltage	300V
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	11A
Number of Levels	1
Current	11A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Torque - Screw	0.31 Nm (2.7 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.05-2mm2
Wire Strip Length	5-6mm
Screw Size	M2
Max Supply Voltage (AC)	300V
Length	19.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Not Applicable

284510-4 Product Details

284510-4 Overview

Packaging is Plug.Its mounting type is Free Hanging (In-Line).A Bulk case is used for packaging.It belongs to the Buchanan Series of products.As well as POLARIZATION AVAILABLE, to name a few.Its Mating Flange feature renders it more powerful in many ways.Free Hanging, Through Hole mounts the part.Operating temperature is -40°C~110°C.There are many benefits that this part shares with other Plug, Female Sockets products as well.
