Name: IRLR024TRR
Brand: Vishay Siliconix
SKU: IRLR024TRR
Availability: InStock

new-10%

IRLR024TRR

Manufacturer part number:IRLR024TRR

Manufacturer:Vishay Siliconix

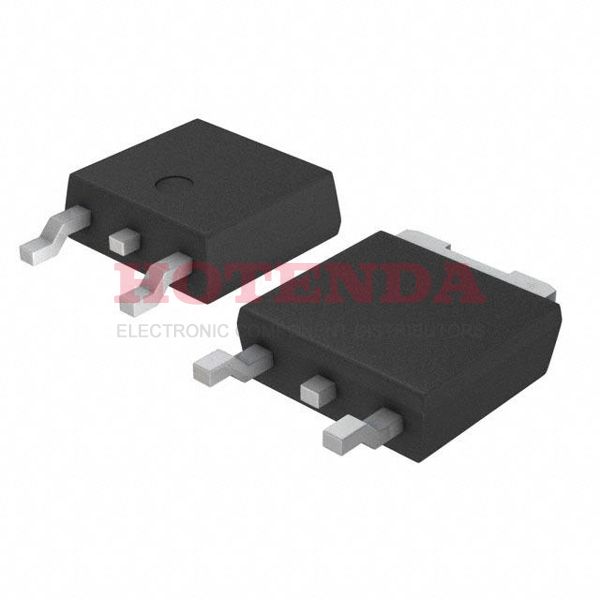

Description:MOSFET N-CH 60V 14A DPAK

Case Package:SOT-23

Datasheet:IRLR024TRR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	D-Pak
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	1997
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Technology	MOSFET (Metal Oxide)
Power Dissipation-Max	2.5W Ta 42W Tc
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	100mOhm @ 8.4A, 5V
Vgs(th) (Max) @ Id	2V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	870pF @ 25V
Current - Continuous Drain (Id) @ 25°C	14A Tc
Gate Charge (Qg) (Max) @ Vgs	18nC @ 5V
Drain to Source Voltage (Vdss)	60V
Drive Voltage (Max Rds On,Min Rds On)	4V 5V
Vgs (Max)	±10V
Continuous Drain Current (ID)	14A
Input Capacitance	870pF
Rds On Max	100 mΩ
RoHS Status	Non-RoHS Compliant

About IRLR024TRR

The IRLR024TRR from Vishay Siliconix is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 60V 14A DPAK.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IRLR024TRR, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
