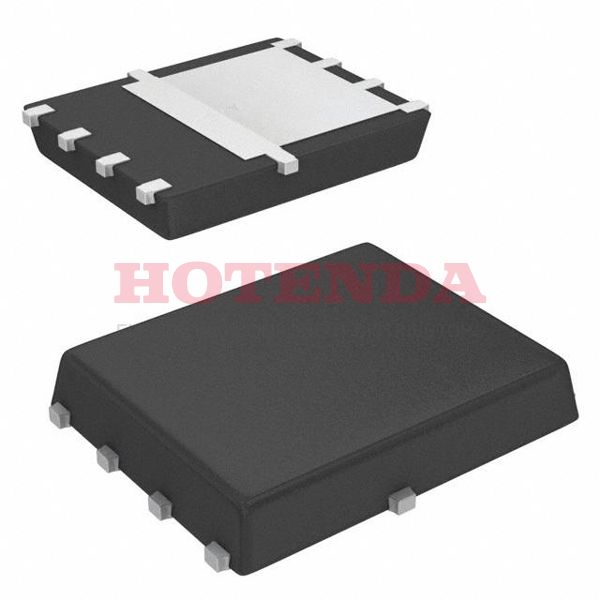

Name: SI7888DP-T1-E3
Brand: Vishay Siliconix
SKU: SI7888DP-T1-E3
Availability: InStock

new-10%

SI7888DP-T1-E3

Manufacturer part number:SI7888DP-T1-E3

Manufacturer:Vishay Siliconix

Description:MOSFET 30V 15.7A 5.0W 12mohm @ 10V

Case Package:SOT-23

Datasheet:SI7888DP-T1-E3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	PowerPAK® SO-8
Number of Pins	8
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2009
Series	TrenchFET®
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	C BEND
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	20
Pin Count	8
JESD-30 Code	R-XDSO-C5
Number of Elements	1
Power Dissipation-Max	1.8W Ta
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	1.8W
Case Connection	DRAIN
Turn On Delay Time	10 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	12m Ω @ 12.4A, 10V
Vgs(th) (Max) @ Id	2V @ 250μA
Current - Continuous Drain (Id) @ 25°C	9.4A Ta
Gate Charge (Qg) (Max) @ Vgs	10.5nC @ 5V
Rise Time	11ns
Drain to Source Voltage (Vdss)	30V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±12V
Fall Time (Typ)	11 ns
Turn-Off Delay Time	24 ns
Continuous Drain Current (ID)	9.4A
Gate to Source Voltage (Vgs)	20V
Pulsed Drain Current-Max (IDM)	50A
DS Breakdown Voltage-Min	30V
Avalanche Energy Rating (Eas)	20 mJ
Height	1.0668mm
Length	5.969mm
Width	5.0038mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

About SI7888DP-T1-E3

The SI7888DP-T1-E3 from Vishay Siliconix is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET 30V 15.7A 5.0W 12mohm @ 10V.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the SI7888DP-T1-E3, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
