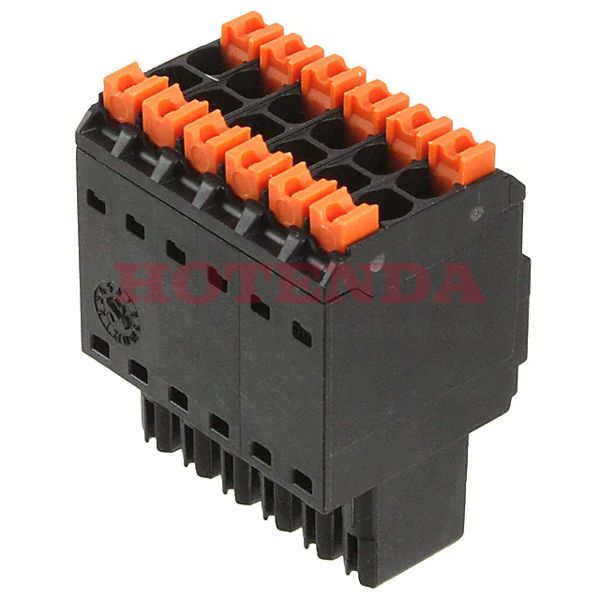

Name: 1277510000
Brand: Weidmüller
SKU: 1277510000
Price: 11.75000 USD
Availability: InStock

new

1277510000

Manufacturer part number:1277510000

Manufacturer:Weidmüller

Description:1277510000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1277510000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2012
Series	Omnimate B2CF
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	12
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.138 3.50mm
Ingress Protection	IP20
Insulation Height	0.598 15.19mm
Current Rating	10A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	2
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-26 AWG
Current - UL	9.5A
Voltage - IEC	320V
Positions Per Level	6
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Current - IEC	13.4A
Stripping Length	10mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1277510000 Product Details

1277510000 Overview

Mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.This product is in the Omnimate B2CF Series.There is a Free Hanging mount on the part.The device runs in -50°C~120°C Operating Temperature.There are a lot of similarities between this part and other Plug, Female Sockets products.
