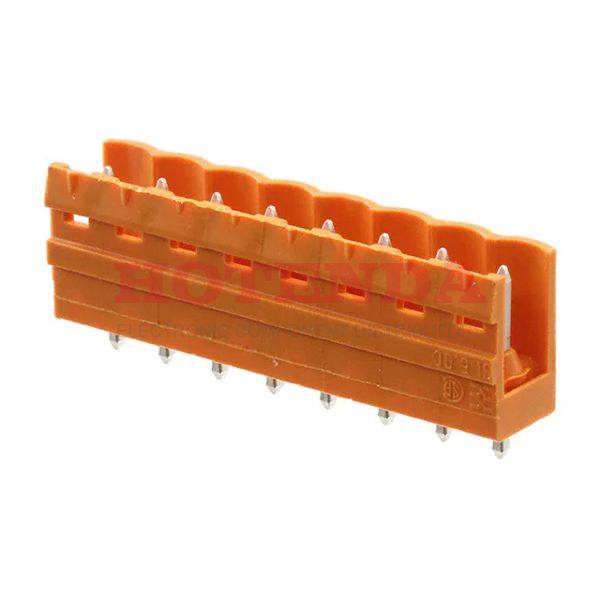

Name: 1581380000
Brand: Weidmüller
SKU: 1581380000
Price: 3.24000 USD
Availability: InStock

new-10%

1581380000

Manufacturer part number:1581380000

Manufacturer:Weidmüller

Description:1581380000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1581380000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (2 Side)
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	50 PIECE/PKG
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Total Number of Contacts	8
Ingress Protection	IP20
Depth	8.5mm
Insulation Height	0.472 12.00mm
Current Rating	15A
Number of Conductors	ONE
Reference Standard	UL, CSA
Termination Style	Solder
Reliability	COMMERCIAL
Approval Agency	CSA, UR
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Contact Style	RND PIN-SKT
Insulation Resistance	1MOhm
Body/Shell Style	RECEPTACLE
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	15A
Number of Levels	1
Current	10A
Number of Poles	8
Contact Pattern	RECTANGULAR
Contact Mating Finish	Tin
Voltage - IEC	400V
Header Orientation	Vertical
Current - IEC	18A
Hole Diameter	1.3 mm
Length	40mm
Width	8.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1581380000 Product Details

1581380000 Overview

Mounting type Through Hole is assigned to the device.In order to package the product, a Bulk case is used.This product is part of the Omnimate SL Series.Other features include 50 PIECE/PKG, to name just a few.Through Hole is the mounting point for the part.Operating temperature is set to -50°C~100°C.There are many benefits that this part shares with other Header, Male Pins, Shrouded (2 Side) products as well.
