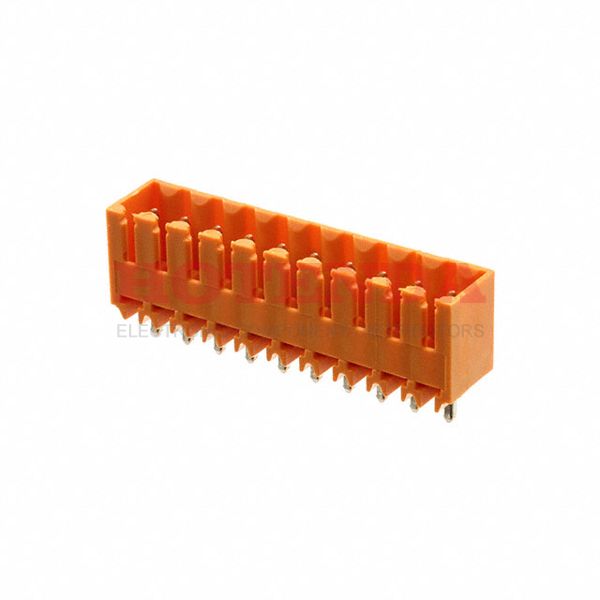

1604550000

Name: 1604550000
Brand: Weidmüller
SKU: 1604550000
Price: 4.46000 USD
Availability: InStock

new-10%

Manufacturer part number:1604550000

Manufacturer:Weidmüller

Description:1604550000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1604550000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	10
Ingress Protection	IP10
Depth	7.5mm
Insulation Height	0.437 11.10mm
Current Rating	14.5A
Termination Style	Solder
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Current	10A
Number of Poles	10
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	Vertical
Current - IEC	17A
Hole Diameter	1.3 mm
Length	36.4mm
Width	7.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free
