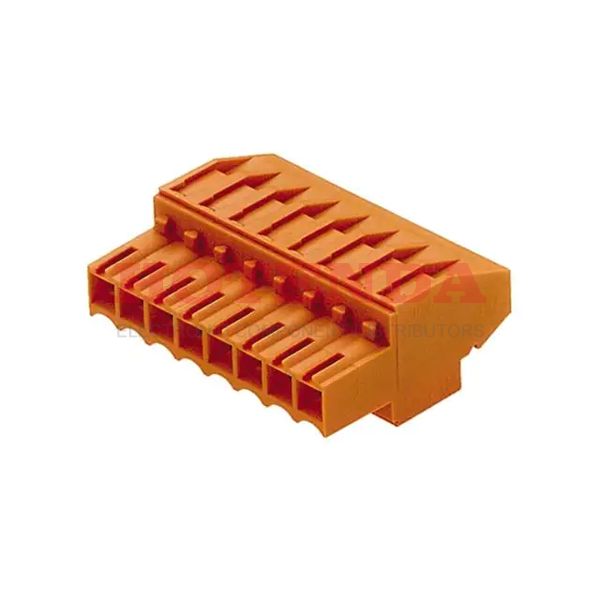

Name: 1639570000
Brand: Weidmüller
SKU: 1639570000
Price: 8.64000 USD
Availability: InStock

new

1639570000

Manufacturer part number:1639570000

Manufacturer:Weidmüller

Description:1639570000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1639570000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Orientation	Straight
Ingress Protection	IP20
Insulation Height	0.888 22.56mm
Current Rating	12A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA
Number of Contacts	12
UL Flammability Code	94V-0
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	12A
Screw Size	M2
Stripping Length	6mm
Height	22.6mm
Length	42mm
Width	11.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1639570000 Product Details

1639570000 Overview

Free Hanging (In-Line) indicates that the device is mounted.We pack the product in a Bulk case.A product of the Omnimate BL Series, it belongs to the range of products of that series.Besides that, there's also HIGH DENSITY, to name a few.You've got Free Hanging, Panel mounted on the part.-50°C~100°C Operating Temperature is the default.There are many benefits that this part shares with other Plug, Female Sockets products as well.
