Name: 1769810000
Brand: Weidmüller
SKU: 1769810000
Price: 21.24000 USD
Availability: InStock

new

1769810000

Manufacturer part number:1769810000

Manufacturer:Weidmüller

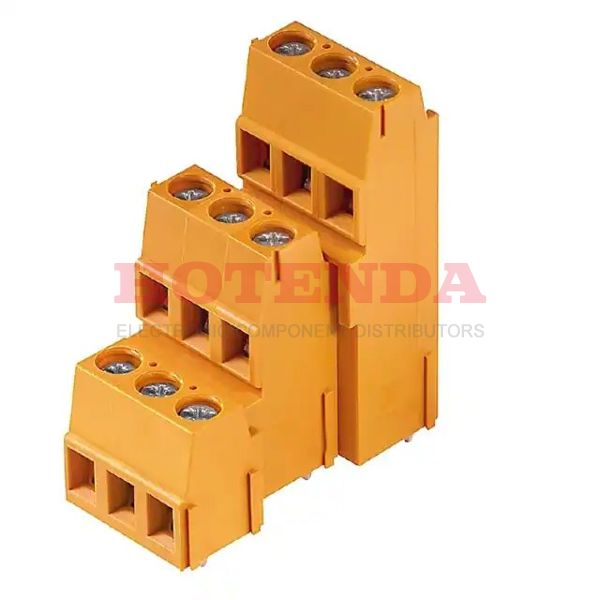

Description:0.200 5.08mm Orange Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 3 Levels 14-24 AWG Omnimate LM

Case Package:SOT-23

Datasheet:1769810000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LM
Published	2009
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
ECCN Code	EAR99
Number of Positions	63
Color	Orange
Number of Rows	3
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Straight
Current Rating	17.5A
Approval Agency	CSA
Wire Gauge	14-24 AWG
Number of Levels	3
Current	15A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	3
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Positions Per Level	21
Number of Ways	42
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M2.5
Hole Diameter	1 mm
Stripping Length	6mm
Wire Cross Section	2.5 mm2
Height	36.6mm
Width	31.8mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1769810000 Product Details

1769810000 Overview

The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Omnimate LM Series of products.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -50°C~120°C Operating Temperature.
