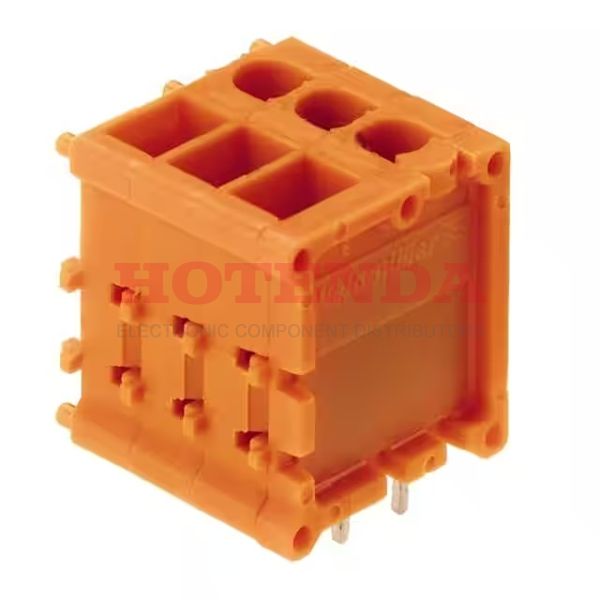

Name: 1782490000
Brand: Weidmüller
SKU: 1782490000
Price: 16.05000 USD
Availability: InStock

new

1782490000

Manufacturer part number:1782490000

Manufacturer:Weidmüller

Description:0.200 5.08mm Orange Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Screw - TOP Clamp 1 Levels 14-26 AWG Omnimate TOP1.5GS

Case Package:SOT-23

Datasheet:1782490000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	CuZn
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~100°C
Packaging	Bulk
Series	Omnimate TOP1.5GS
Published	2008
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	94V-2, PA
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Current Rating	10A
Approval Agency	CSA
Wire Gauge	14-26 AWG
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways	15
Safety Approval	CSA
Mating Orientation	Vertical with Board
Wire Termination	Screw - TOP Clamp
Screw Thread	M2.5
Hole Diameter	1.3 mm
Number of Positions Per Level	15
Stripping Length	10mm
Wire Cross Section	2.5 mm2
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2

1782490000 Product Details

1782490000 Overview

The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Omnimate TOP1.5GS Series of products.In addition, there are other features such as 94V-2, PA, to mention only a few.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -50°C~100°C Operating Temperature.
