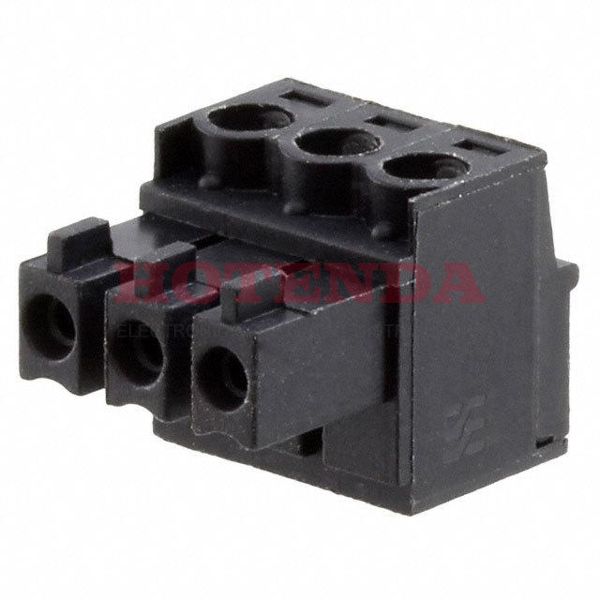

1792780000

1792780000

1792780000

Weidmüller

1792780000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

SOT-23

1792780000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialCopper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Housing Material Polyamide (PA), Nylon, Glass Filled
Operating Temperature-50°C~120°C
PackagingBulk
Published 2004
Series Omnimate BC
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Type Plug, Female Sockets
Color Black
Number of Rows 1
Voltage - Rated 300V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.150 3.81mm
Orientation Right Angle
Ingress ProtectionIP20
Insulation Height 0.437 11.10mm
Current Rating17A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Approval Agency CSA, cURus
Number of Contacts 3
UL Flammability Code 94V-0
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 16 AWG
Wire/Cable Gauge 28 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-28 AWG
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Current - IEC 17.5A
Screw Size M2
Stripping Length 7mm
Height 11.1mm
Length 12.2mm
Width 15.5mm
Material Flammability Rating UL94 V-0
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:1723 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.30000$3.3
10$2.49600$24.96
25$2.31360$57.84
50$2.08020$104.01
100$2.02950$202.95
250$1.77580$443.95
500$1.62360$811.8

1792780000 Product Details

1792780000 Overview


Free Hanging (In-Line) is the mounting type.To package the product, we use a Bulk case.It's from the Omnimate BC Series.It is mounted by Cable, Free Hanging.Running in -50°C~120°C Operating Temperature.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.

1792780000 Features


Omnimate BC series

1792780000 Applications


There are a lot of Weidmüller 1792780000 Terminal Blocks applications.

  • Automotive Electronics
  • Electrical substations
  • Embedded systems
  • Medical technology
  • Energy efficient lighting (LED)
  • Measuring & Control Technology
  • Communication
  • LED municipal outdoor and street lighting
  • Anywhere power is distributed
  • All Electrical Machinery
