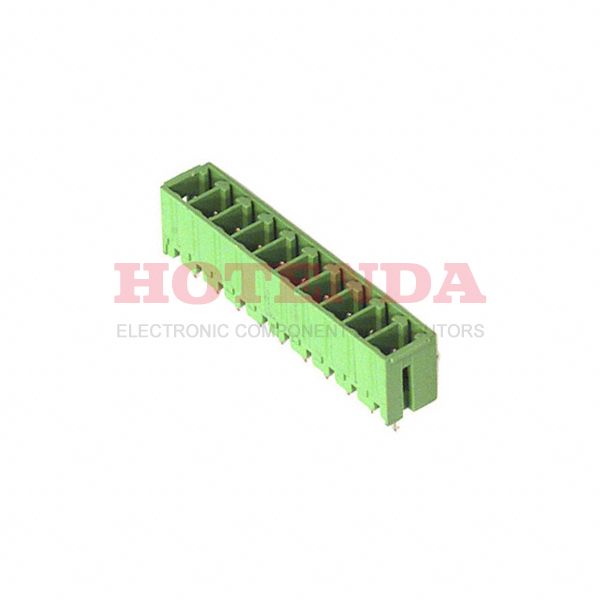

Name: 1793670000
Brand: Weidmüller
SKU: 1793670000
Price: 2.71000 USD
Availability: InStock

new-10%

1793670000

Manufacturer part number:1793670000

Manufacturer:Weidmüller

Description:1793670000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1793670000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2008
Series	Omnimate SC
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Total Number of Contacts	10
Ingress Protection	IP20
Depth	7.12mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	5MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Voltage - UL	300V
Voltage - IEC	320V
Header Orientation	Vertical
Current - IEC	17.5A
Number of Positions Per Level	10
Length	39.49mm
Width	7.15mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

1793670000 Product Details

1793670000 Overview

Through Hole is the mounting type of the device.A Bulk case is used to package the product.Among the products in the Omnimate SC Series, it is one of the most popular.There's a Through Hole on the part.It operates at an operating temperature of -50°C~120°C.Other Header, Male Pins, Shrouded (4 Side) products share lots of benefits with this part.
