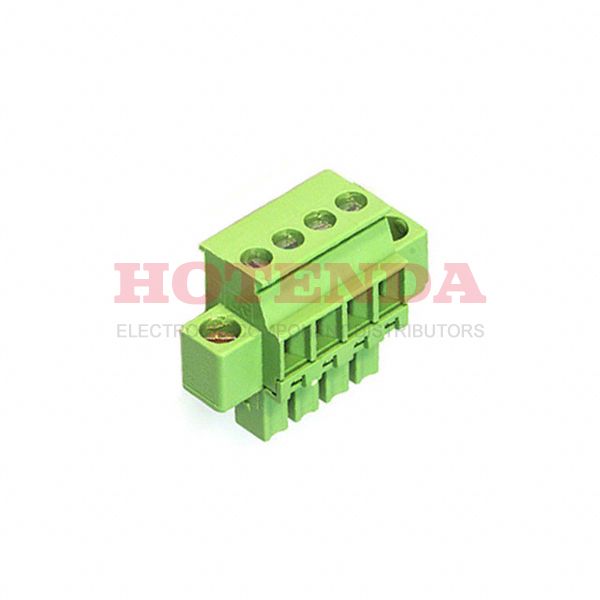

Name: 1799190000
Brand: Weidmüller
SKU: 1799190000
Price: 5.72000 USD
Availability: InStock

new-10%

1799190000

Manufacturer part number:1799190000

Manufacturer:Weidmüller

Description:1799190000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1799190000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2003
Series	Omnimate BC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Orientation	Straight
Ingress Protection	IP20
Insulation Height	0.411 10.44mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	4
Insulation Resistance	5MOhm
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	7mm
Current - IEC	17.5A
Screw Size	M2
Height	19.1mm
Width	10.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1799190000 Product Details

1799190000 Overview

A Free Hanging (In-Line) mounting type is specified for the device.To package the product, we use a Bulk case.As a product of the Omnimate BC Series, it can be found in this category.This feature renders it more powerful in a number of ways because of its Mating Flange feature.By Free Hanging, Panel, the part is mounted.-50°C~120°C Operating Temperature is used by the device.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
