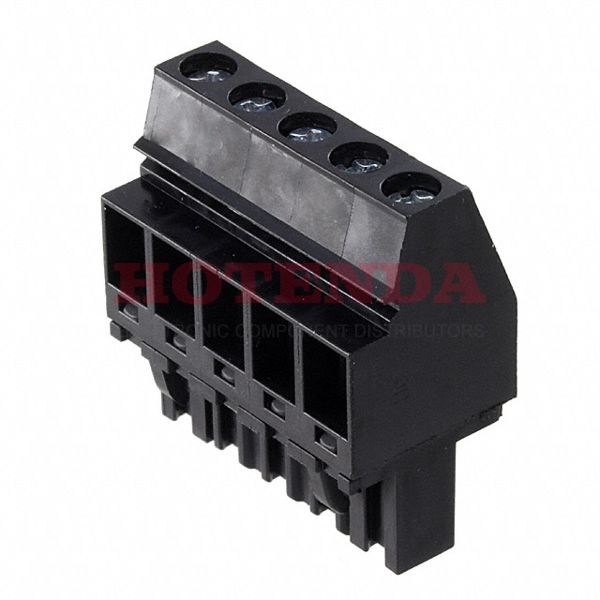

Name: 1948270000
Brand: Weidmüller
SKU: 1948270000
Price: 6.43000 USD
Availability: InStock

new-10%

1948270000

Manufacturer part number:1948270000

Manufacturer:Weidmüller

Description:1948270000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1948270000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2010
Series	Omnimate BL
Feature	Retention Latches (Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
Pitch	0.200 5.08mm
Insulation Height	0.555 14.10mm
Current Rating	13A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Voltage	300V
Number of Levels	1
Current	20A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	12 AWG
Number of Poles	5
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways	5
Safety Approval	UL; CSA
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-4mm2
Current - IEC	23A
Screw Size	M2.5
Stripping Length	7mm
Wire Cross Section	4 mm2
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1948270000 Product Details

1948270000 Overview

You'll get Terminal Block packages.Mounting type is Free Hanging (In-Line).It's packaged in a Bulk case.The product is a member of the Omnimate BL Series.There are also features like STANDARD: UL 94V-0, just to name a few.Several benefits come from the Retention Latches (Wire Side) feature.There is a mounting hole at Free Hanging.It runs at -50°C~100°C Operating Temperature.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
