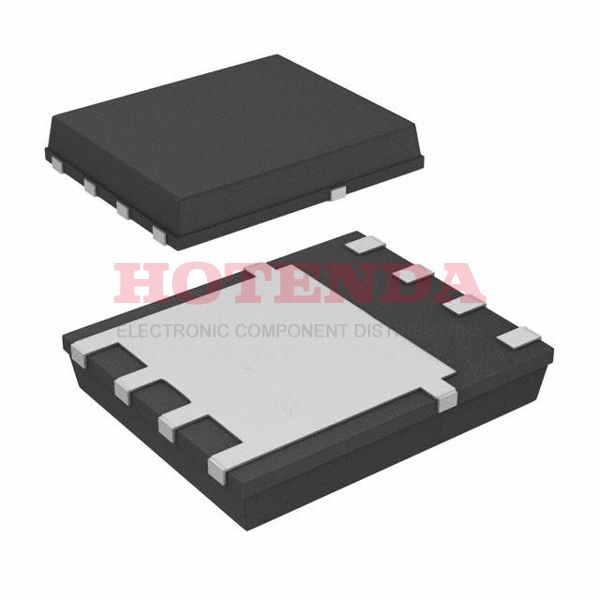

Name: IRFH5215TR2PBF
Brand: Infineon Technologies
SKU: IRFH5215TR2PBF
Availability: InStock

new-10%

IRFH5215TR2PBF

Manufacturer part number:IRFH5215TR2PBF

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 150V 5.0A PQFN

Case Package:SOT-23

Datasheet:IRFH5215TR2PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-VQFN Exposed Pad
Number of Pins	8
Supplier Device Package	PQFN (5x6)
Packaging	Cut Tape (CT)
Published	2011
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Resistance	58MOhm
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	3.6W
Technology	MOSFET (Metal Oxide)
Number of Elements	1
Element Configuration	Single
Power Dissipation	3.6W
Turn On Delay Time	6.7 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	58mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	5V @ 100μA
Input Capacitance (Ciss) (Max) @ Vds	1350pF @ 50V
Current - Continuous Drain (Id) @ 25°C	5A Ta 27A Tc
Gate Charge (Qg) (Max) @ Vgs	32nC @ 10V
Rise Time	6.3ns
Drain to Source Voltage (Vdss)	150V
Fall Time (Typ)	2.9 ns
Turn-Off Delay Time	11 ns
Continuous Drain Current (ID)	5A
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	150V
Input Capacitance	1.35nF
Recovery Time	60 ns
Drain to Source Resistance	58mOhm
Rds On Max	58 mΩ
Nominal Vgs	5 V
Height	850μm
Length	6mm
Width	5mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

About IRFH5215TR2PBF

The IRFH5215TR2PBF from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 150V 5.0A PQFN.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IRFH5215TR2PBF, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
