IRL8113 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website
SOT-23
IRL8113 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mounting Type
Through Hole
Package / Case
TO-220-3
Surface Mount
YES
Transistor Element Material
SILICON
Operating Temperature
-55°C~175°C TJ
Packaging
Tube
Published
2004
Series
HEXFET®
JESD-609 Code
e3
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Terminal Finish
Matte Tin (Sn) - with Nickel (Ni) barrier
Technology
MOSFET (Metal Oxide)
Terminal Position
SINGLE
Terminal Form
GULL WING
Peak Reflow Temperature (Cel)
260
[email protected] Reflow Temperature-Max (s)
30
JESD-30 Code
R-PSSO-G2
Qualification Status
Not Qualified
Number of Elements
1
Configuration
SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max
110W Tc
Operating Mode
ENHANCEMENT MODE
Case Connection
DRAIN
FET Type
N-Channel
Transistor Application
SWITCHING
Rds On (Max) @ Id, Vgs
6m Ω @ 21A, 10V
Vgs(th) (Max) @ Id
2.25V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds
2840pF @ 15V
Current - Continuous Drain (Id) @ 25°C
105A Tc
Gate Charge (Qg) (Max) @ Vgs
35nC @ 4.5V
Drain to Source Voltage (Vdss)
30V
Drive Voltage (Max Rds On,Min Rds On)
4.5V 10V
Vgs (Max)
±20V
Drain Current-Max (Abs) (ID)
42A
Drain-source On Resistance-Max
0.006Ohm
Pulsed Drain Current-Max (IDM)
420A
DS Breakdown Voltage-Min
30V
Avalanche Energy Rating (Eas)
220 mJ
RoHS Status
Non-RoHS Compliant
In-Stock:2506 items

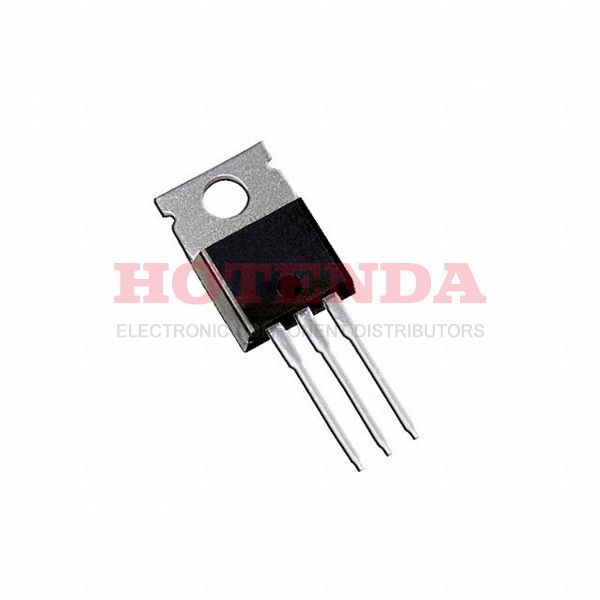

IRL8113 Product Details
IRL8113 Description
The IRL8113 is a HEXFET? N-channel Power MOSFET offering fully characterized avalanche voltage and current. The Infineon IRL8113 is suitable for high-frequency synchronous buck converters. The operating and storage temperature is between -55 and +175??. The Infineon IRL8113 is in the TO-220AB package with 110w.
IRL8113 Features
RoHS Compliant
Industry-leading quality
Low RDS(ON) at 4.5V VGS
Fully Characterized Avalanche Voltage and Current
Ultra-Low Gate Impedance
Logic Level
IRL8113 Applications
Power Management
Computers & Computer Peripherals
Induction furnaces
Arc furnaces and arc welders
Steel rolling mills
Large motors with periodic loading
Thyristor drives
Related Products
Similar Transistors - FETs, MOSFETs - Single from Infineon Technologies and other manufacturers
