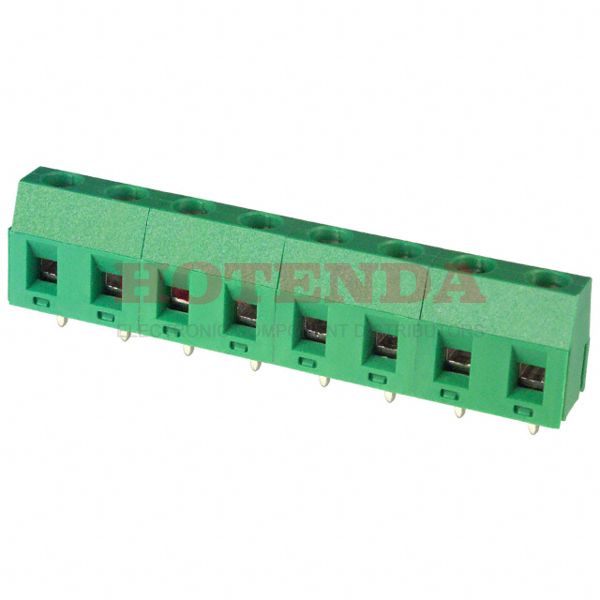

Name: ED365/8
Brand: On Shore Technology Inc.
SKU: ED365/8
Price: 4.34000 USD
Availability: InStock

new-10%

ED365/8

Manufacturer part number:ED365/8

Manufacturer:On Shore Technology Inc.

Description:0.295 7.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-22 AWG ED365

Case Package:SOT-23

Datasheet:ED365/8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	8
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Copper
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED365
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	8
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Green
Number of Rows	1
Pitch	0.295 7.50mm
Lead Pitch	5mm
Housing Color	Green
Wire Gauge	12-22 AWG
Voltage	300V
Plating	Copper
Number of Levels	1
Current	16A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.5 Nm (4.4 Lb-In)
Positions Per Level	8
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	8
Height	13.5mm
Length	60mm
Width	9mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

ED365/8 Product Details

ED365/8 Overview

This device has a mounting type of Through Hole.We package the product with a Bulk case.The product is part of the ED365 Series.It has a 8 pin configuration.If it is to be used, it should be kept at a temperature below 105°C.There must be a minimum temperature of -30°C for this device to operate.You've got Through Hole mounted on the part.This device runs at -30°C~105°C operating temperature.
