Name: ED550/16DS
Brand: On Shore Technology Inc.
SKU: ED550/16DS
Price: 3.04000 USD
Availability: InStock

new-10%

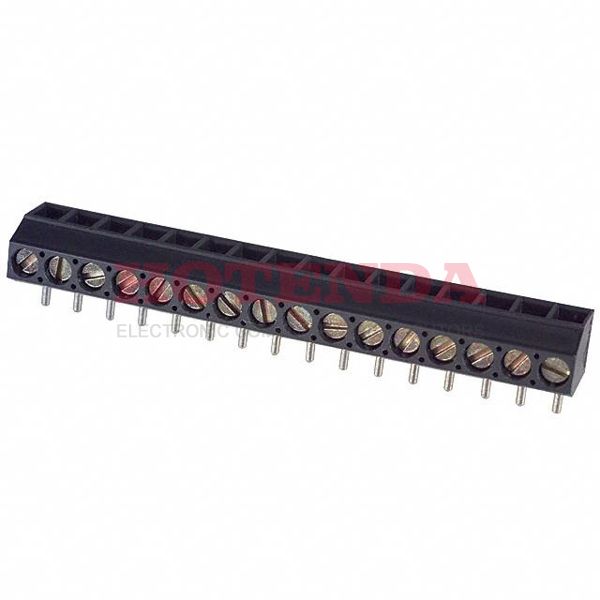

ED550/16DS

Manufacturer part number:ED550/16DS

Manufacturer:On Shore Technology Inc.

Description:0.138 3.50mm Gray Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Screw - Leaf Spring, Wire Guard 1 Levels 16-28 AWG ED550/DS

Case Package:SOT-23

Datasheet:ED550/16DS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED550/DS
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Gray
Number of Rows	1
Additional Feature	STANDARD: UL 94V-0, PA66
Pitch	0.138 3.50mm
Lead Pitch	3.5mm
Housing Color	Grey
Wire Gauge	16-28 AWG
Voltage	125V
Plating	Steel
Number of Levels	1
Current	6A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.4 Nm (3.5 Lb-In)
Number of Ways	16
Safety Approval	CUL; UL
Mating Orientation	Vertical with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2
Number of Positions Per Level	16
Height	6.5mm
Length	56mm
Width	8.2mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

ED550/16DS Product Details

ED550/16DS Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the ED550/DS Series.Other features include STANDARD: UL 94V-0, PA66, to name just a few.There is a mounting hole at Through Hole.Devices operate at -30°C~105°C operating temperatures.
