Name: OSTTE050161
Brand: On Shore Technology Inc.
SKU: OSTTE050161
Price: 1.33000 USD
Availability: InStock

new-10%

OSTTE050161

Manufacturer part number:OSTTE050161

Manufacturer:On Shore Technology Inc.

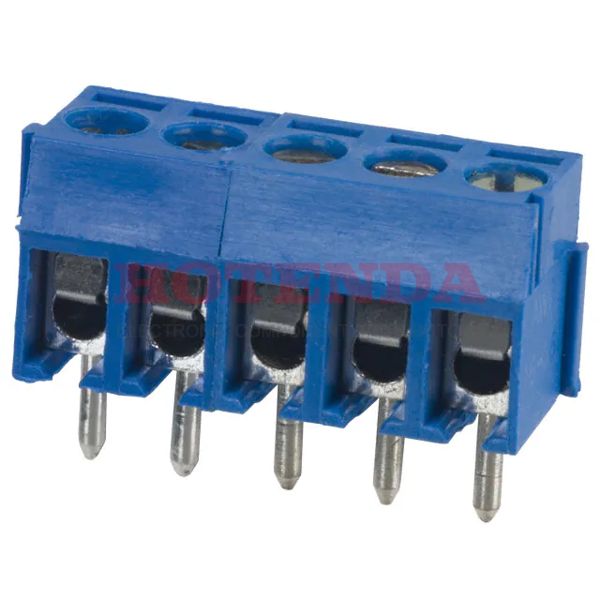

Description:0.138 3.50mm Blue Bulk Thermoplastic Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 16-26 AWG OSTTE

Case Package:SOT-23

Datasheet:OSTTE050161 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Brass, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel - Zinc Plated
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	OSTTE
Feature	Interlocking (Side)
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	5
Color	Blue
Number of Rows	1
Voltage - Rated	300V
Pitch	0.138 3.50mm
Current Rating	10A
Wire Gauge	16-26 AWG
Voltage	125V
Plating	Steel
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.2 Nm (1.7 Lb-In)
Positions Per Level	5
Number of Ways	5
Safety Approval	CSA; UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2
Height	8.7mm
Length	17.5mm
Width	7mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

OSTTE050161 Product Details

OSTTE050161 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the OSTTE Series.In many ways, its Interlocking (Side) feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -30°C~105°C Operating Temperature.
