Name: 1751251
Brand: Phoenix Contact
SKU: 1751251
Price: 2.16000 USD
Availability: InStock

new-10%

1751251

Manufacturer part number:1751251

Manufacturer:Phoenix Contact

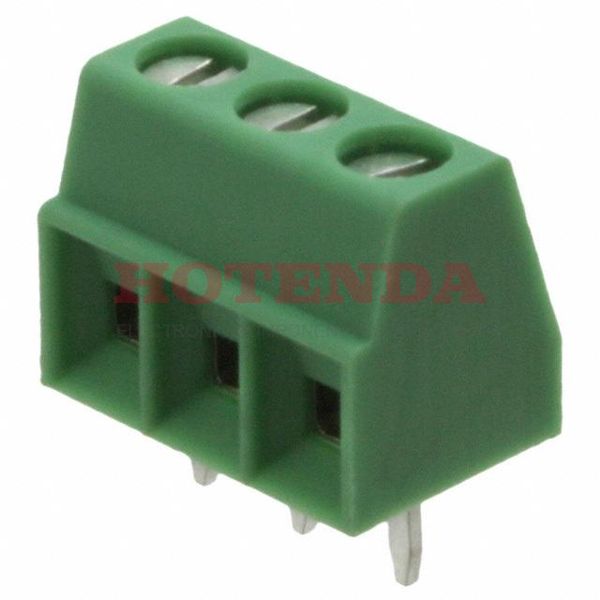

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG COMBICON MKDS

Case Package:SOT-23

Datasheet:1751251 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	1.609998g
Packaging	Bulk
Series	COMBICON MKDS
Published	2008
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	200V
Additional Feature	PA, 94V-0
Pitch	0.138 3.50mm
Orientation	Straight
Current Rating	13.5A
Approval Agency	CB, CSA, UL, cULus
Number of Contacts	3
Wire Gauge	16-30 AWG
Voltage	300V
Max Current Rating	13.5A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	3
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Stripping Length	5mm
Height	11mm
Length	7.3mm
Width	12mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1751251 Product Details

1751251 Overview

This product is packaged in a Screw carton.Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the COMBICON MKDS Series.In addition, there are other features, such as PA, 94V-0, to mention just a few.Mounting of the part is based on Through Hole.
