Name: 1715789
Brand: Phoenix Contact
SKU: 1715789
Price: 5.36000 USD
Availability: InStock

new-10%

1715789

Manufacturer part number:1715789

Manufacturer:Phoenix Contact

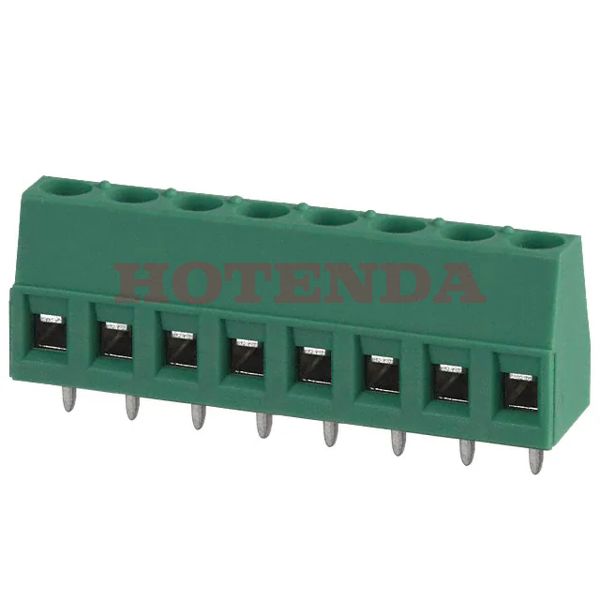

Description:0.200 5.08mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDS

Case Package:SOT-23

Datasheet:1715789 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	11.570007g
Packaging	Bulk
Series	COMBICON MKDS
Published	2001
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	PCB, Screw, Terminal Block
Color	Green
Number of Rows	1
Voltage - Rated	300V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Straight
Depth	9.8mm
Current Rating	17.5A
Voltage - Rated AC	250V
Approval Agency	CSA, UL, cULus
Lead Pitch	5.08mm
Number of Contacts	8
Wire Gauge	14-30 AWG
Max Supply Voltage	250V
Max Current Rating	22A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	26 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	8
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Stripping Length	7mm
Height	17.3mm
Length	40.64mm
Width	13.8mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1715789 Product Details

1715789 Overview

The product is packaged in PCB, Screw, Terminal Block.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON MKDS Series.To name a few, there is also PA, 94V-0.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.It is recommended that this chip's supply voltage does not exceed 250V.
